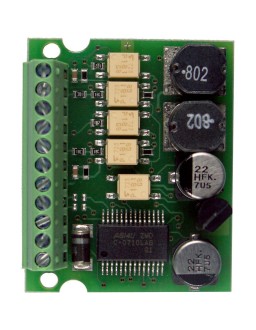

BWR1443 ASi PCB Module, 29,7 mm x 36,5 mm

ASi PCB Module, 29,7 mm x 36,5 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via screw terminals, ASi connection via screw terminals, 1 AB..

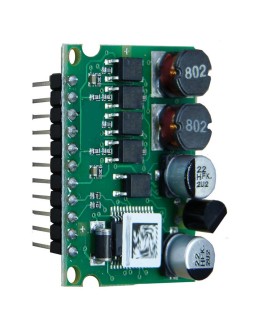

BWR3189 ASi PCB Module, 29,7 mm x 36,5 mm

ASi PCB Module, 29,7 mm x 36,5 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via wiring pins, straight, ASi connection via wiring pins, st..

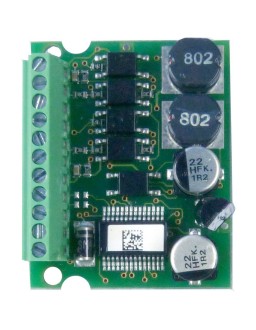

BWR2393 ASi PCB Module, 29,7 mm x 36,5 mm

ASi PCB Module, 29,7 mm x 36,5 mm, 2 digital inputs (mirrored), 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via screw terminals, coated, ASi connection via sc..

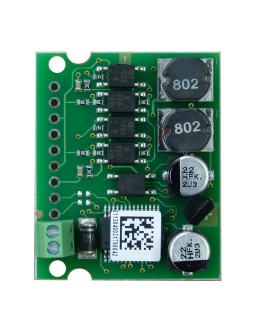

BWR1957 ASi PCB Module, 29,7 mm x 36,5 mm

ASi PCB Module, 29,7 mm x 36,5 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via solder lugs, ASi connection via screw terminals, 1 AB add..

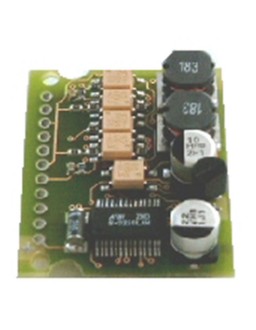

BWR1421 ASi PCB Module, 29,7 mm x 36,5 mm

ASi PCB Module, 29,7 mm x 36,5 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via solder lugs, ASi connection via solder lugs, 1 AB address..

BWR3068 ASi PCB Module, 43 mm x 30 mm

ASi PCB Module, 43 mm x 30 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 20 mA per output, periphery connection via connecting wires (200 mm), thick coated, LED, ASi connection via connecting wires (200 mm), 1 AB..

BWR2574 ASi PCB Module, 43 mm x 30 mm

ASi PCB Module, 43 mm x 30 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 20 mA for sensor supply, periphery connection via connecting wires (100 mm), thick coated, LED, ASi connection via connecting wires (100 mm..

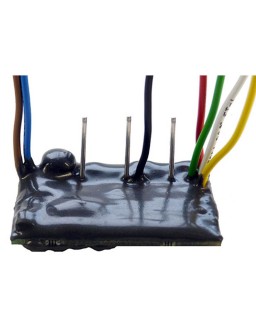

BWR2522 ASi PCB Module, 43 mm x 30 mm

ASi PCB Module, 43 mm x 30 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 20 mA for sensor supply, max. 20 mA per output, periphery connection via connecting wires (100 mm) and contact pins, thick coated, LED..

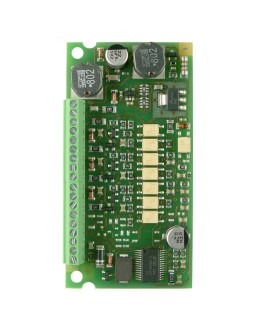

BWR1387 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via screw terminals, ASi connection via screw terminals, 1 AB..

BWR2229 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via plug-in spring type terminals, ASi connection via plug-in..

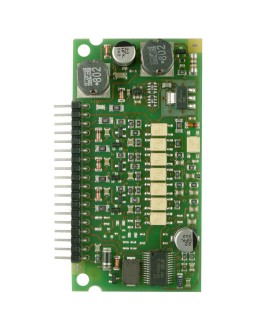

BWR1386 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via wiring pins, angled, ASi connection via wiring pins, angl..

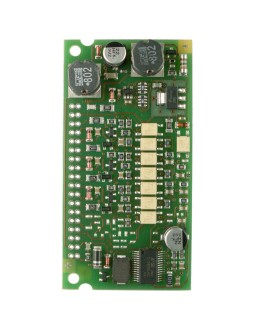

BWR1408 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via solder lugs, ASi connection via solder lugs, 1 AB address..
