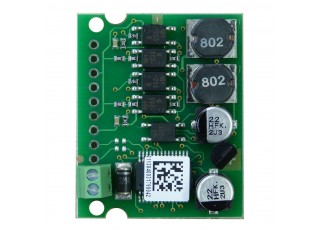

BWR1957 ASi PCB Module, 29,7 mm x 36,5 mm
- Brand:Bihl+Wiedemann
- Product Code: BWR1957
- Availability: Out Of Stock
ASi PCB Module, 29,7 mm x 36,5 mm, 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 80 mA for sensor supply, max. 80 mA per output, periphery connection via solder lugs, ASi connection via screw terminals, 1 AB address
| Circuit board dimensions | 29,7 mm x 36,5 mm |
| Inputs digital | 2 |
| Outputs digital | 2 x electronic |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | out of ASi |
| PCB connection | solder lugs, screw terminals only at ASi pins |
| Coating | no |
| ASi connection | screw terminals |
| ASi address | 1 AB address |
