Bihl+Wiedemann page 31

BWR1682 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, max. 180 mA for sensor supply, max. 250 mA per output, periphery connection via solder lugs, LED, ASi connection via solder lugs, 1 AB ad..

BWR1219 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 260 mA for sensor supply, max. 100 mA per output, periphery connection via screw terminals, ASi connection via screw terminals, 1 si..

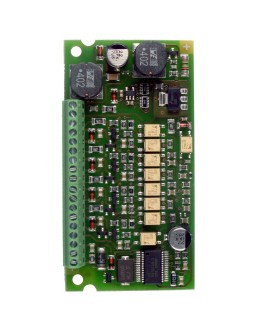

BWR1389 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via screw terminals, ASi connection via screw terminals, 1 si..

BWR1470 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 260 mA for sensor supply, max. 100 mA per output, periphery connection via screw terminals, LED, ASi connection via screw terminals,..

BWR3190 ASi PCB Module, 73 mm x 37,5 mm,

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via screw terminals, coated, LED, ASi connection via screw te..

BWR1789 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 260 mA for sensor supply, max. 100 mA per output, periphery connection via screw terminals, coated, LED, ASi connection via screw te..

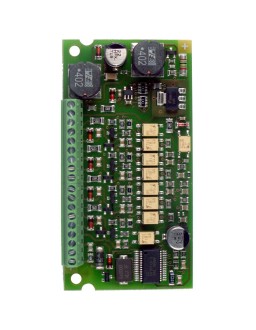

BWR1628 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage out of ASi, output voltage/actuator supply out of AUX, max. 250 mA per output, periphery connection via screw terminals, LED, ASi connection via screw terminals, 1 single address ..

BWR2803 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 250 mA per output, periphery connection via screw terminals, thick coated, LED, ASi connection via screw terminals, 1 AB address ..

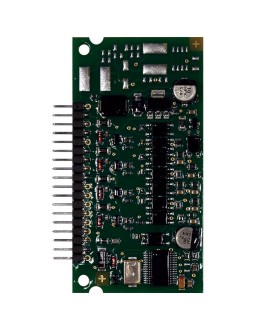

BWR3215 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 250 mA per output, periphery connection via wiring pins, angled, coated, LED, ASi connection via wiring pins, angled, 1 AB address ..

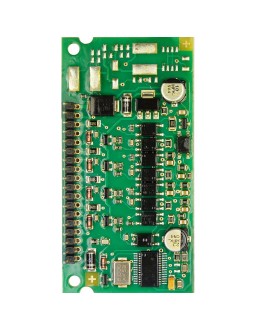

BWR3214 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 250 mA per output, periphery connection via wiring pins, straight, coated, LED, ASi connection via wiring pins, straight, 1 AB address ..

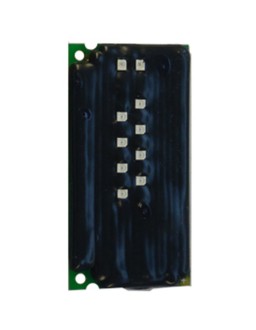

BWR3213 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 250 mA per output, periphery connection via wiring pins, straight, thick coated, LED, ASi connection via wiring pins, straight, 1 AB addr..

BWR1889 ASi PCB Module, 73 mm x 37,5 mm

ASi PCB Module, 73 mm x 37,5 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of ASi, max. 180 mA for sensor supply, max. 100 mA per output, periphery connection via plug-in spring type terminals, ASi connection via plug-in..
