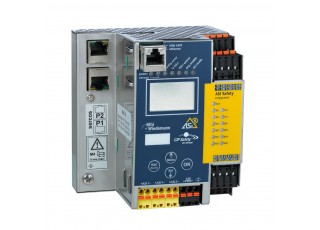

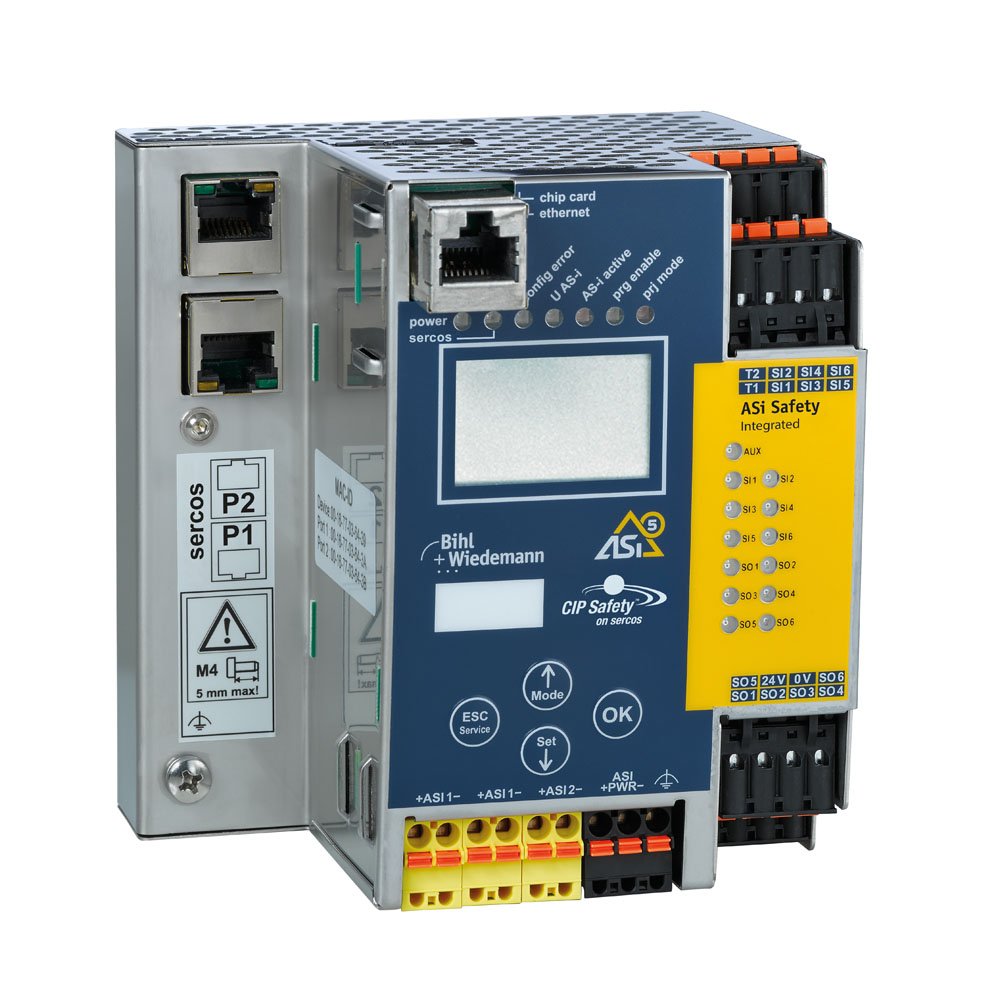

BWU3860 ASi-5/ASi-3 CIP Safety over Sercos Gateway with integrated Safety Monitor, 2 ASi-5/ASi-3 masters
- Brand:Bihl+Wiedemann
- Product Code: BWU3860
- Availability: Out Of Stock
ASi-5/ASi-3 CIP Safety over Sercos Gateway with integrated Safety Monitor, 2 ASi-5/ASi-3 masters, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, CIP Safety via Sercos and Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
| Fieldbus interface | Sercos, OPC UA |
| ASi-5/ASi-3 | ASi-5 + ASi-3 compatible |
| Number of ASi networks, number of ASi Master | 2 ASi networks, 2 ASi-5/ASi-3 Masters |
| Integrated decoupling, ASi current measurement in the gateway | yes, max. 4 A/ASi network |
| Inputs Safety, SIL 3, Cat. 4 | 3 x 2 channels |
| Outputs Safety, SIL 3, cat. 4 | 6 release circuits, 6 x electronic safe outputs |
| Safety communication | CIP Safety over Sercos + Safe Link |
