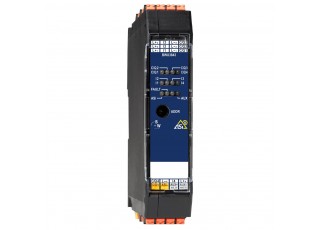

BWU3843 ASi-5 Module with integrated IO-Link Master with 4 Ports, IP20, 4 IO-Link Ports
- Brand:Bihl+Wiedemann
- Product Code: BWU3843
- Availability: Out Of Stock
ASi-5 Module with integrated IO-Link Master in IP20, 22,5 mm x 114 mm, with 6 x COMBICON connections, 4 x IO-Link ports with configurable conectors for port class A or port class B, sensor supply (IO-Link supply and input/output supply) out of AUX, periphery connection via clamps, ASi connection via clamps, 1 ASi-5 address, optimal application in the main control cabinet
Terminal assignment (C/Q, L+, L-, I) compatible with pin assignment of IO-Link port class A (M12).
Connected IO-Link devices with port class B (M12) with a higher current consumption have to be supplied directly via a separate power supply.
Compatible with 3 pol IO-Link devices (M8).
| Inputs digital | 4 x IO-Link Port + 4 x electronic |
| Outputs digital | 4 x IO-Link Port |
| Input voltage (sensor supply) | out of AUX |
| Output voltage (actuator supply) | out of AUX |
| Connection | push in terminals |
| Round cable | no |
| ASi address | 1 ASi-5 address |
