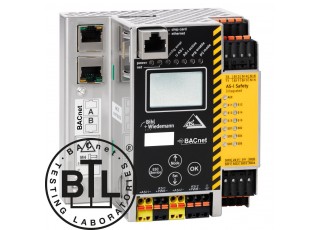

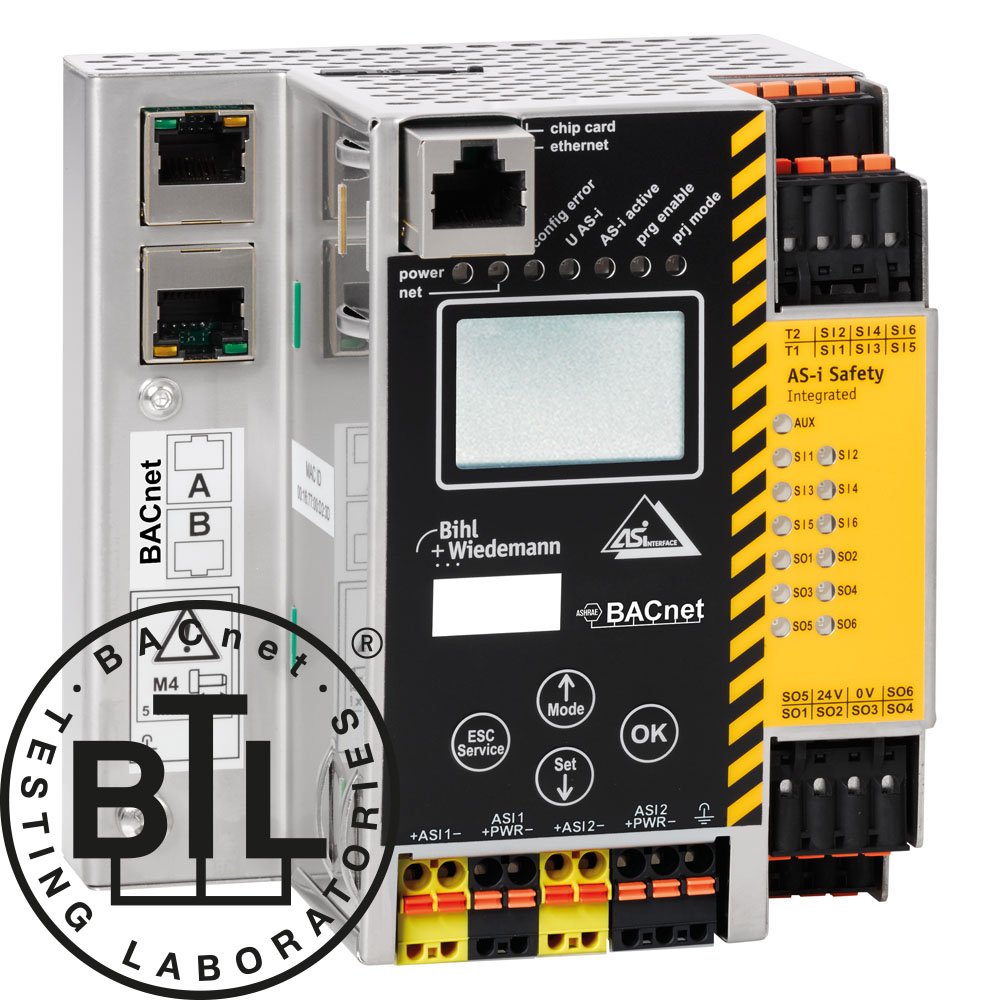

BWU4001 ASi-3 BACnet/IP Gateway with integrated Safety Monitor, 2 ASi masters
- Brand:Bihl+Wiedemann
- Product Code: BWU4001
- Availability: Out Of Stock
ASi-3 BACnet/IP Gateway with integrated Safety Monitor, 2 ASi masters, OPC UA server, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 128 x 2 channels safe inputs, 3968 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 128 safe outputs, 3968 safe outputs in max. configuration, Safe Link, diagnostic and configuration via BACnet or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
| Fieldbus interface | BACnet/IP, OPC UA |
| ASi-5/ASi-3 | ASi-3 compatible |
| Number of ASi networks, number of ASi Master | 2 ASi networks, 2 ASi-3 Masters |
| Integrated decoupling, ASi current measurement in the gateway | no, max. 8 A/ASi network, redundant supply |
| Inputs Safety, SIL 3, Cat. 4 | 3 x 2 channels |
| Outputs Safety, SIL 3, cat. 4 | 6 release circuits, 6 x electronic safe outputs |
| Safety communication | Safe Link |
