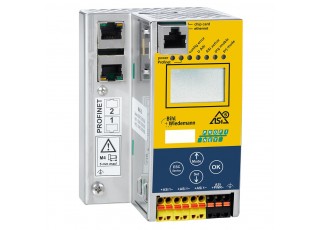

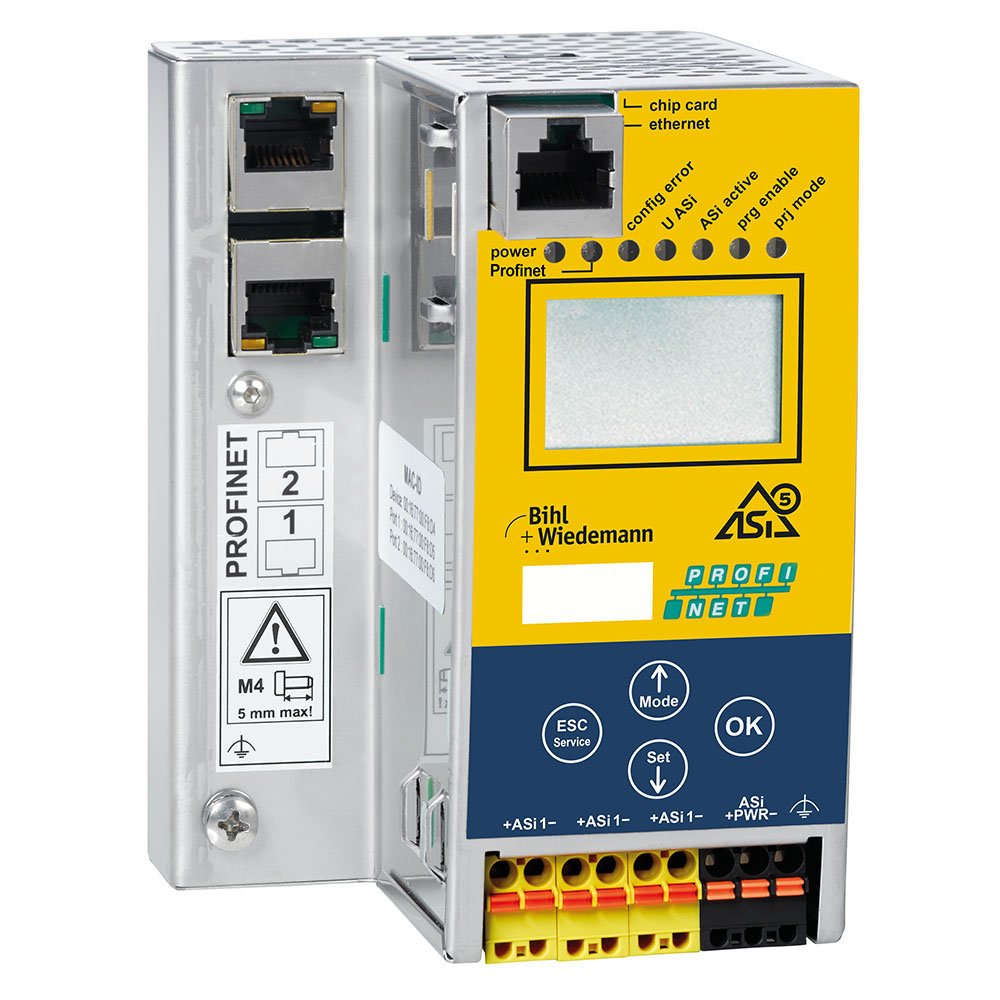

BWU3998 ASi-5/ASi-3 PROFINET Gateway with integrated Safety Monitor, 1 ASi-5/ASi-3 master
- Brand:Bihl+Wiedemann
- Product Code: BWU3998
- Availability: Out Of Stock
ASi-5/ASi-3 PROFINET Gateway with integrated Safety Monitor, 1 ASi-5/ASi-3 master, OPC UA server, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, safe inputs (SIL 3, cat. 4) expandable to max. 31 x 2 channels safe inputs, 1891 x 2 channels safe inputs in max. configuration, release circuits expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, Safe Link, diagnostic and configuration via PROFINET or Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
| Fieldbus interface | PROFINET, OPC UA |
| ASi-5/ASi-3 | ASi-5 + ASi-3 compatible |
| Number of ASi networks, number of ASi Master | 1 ASi network, 1 ASi-5/ASi-3 Master |
| Integrated decoupling, ASi current measurement in the gateway | yes, max. 4 A/ASi network |
| Inputs Safety, SIL 3, Cat. 4 | no local safe input |
| Outputs Safety, SIL 3, cat. 4 | no local safe output |
| Safety communication | Safe Link |
