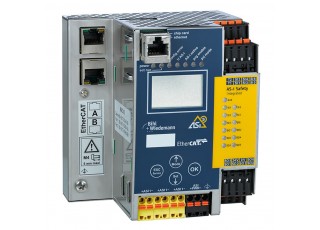

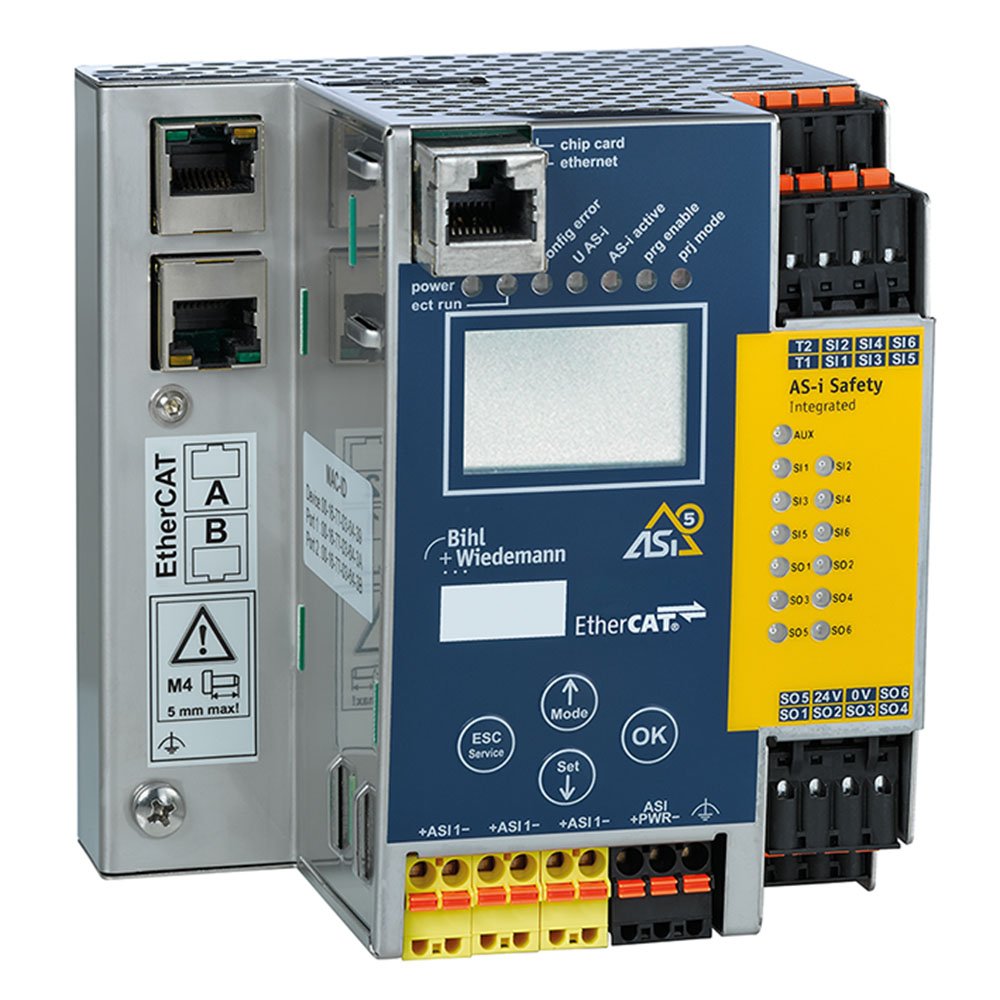

BWU3991 ASi-5/ASi-3 EtherCAT Gateway with integrated Safety Monitor, 1 ASi-5/ASi-3 master
- Brand:Bihl+Wiedemann
- Product Code: BWU3991
- Availability: Out Of Stock
ASi-5/ASi-3 EtherCAT Gateway with integrated Safety Monitor, 1 ASi-5/ASi-3 master, OPC UA server, integrated decoupling, max. 4 A per ASi circuit, ASi current measurement in the gateway, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 31 x 2 channels safe inputs, 1891 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x fast electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, safety communication over Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
| Fieldbus interface | EtherCAT, OPC UA |
| ASi-5/ASi-3 | ASi-5 + ASi-3 compatible |
| Number of ASi networks, number of ASi Master | 1 ASi network, 1 ASi-5/ASi-3 Master |
| Integrated decoupling, ASi current measurement in the gateway | yes, max. 4 A/ASi network |
| Inputs Safety, SIL 3, Cat. 4 | 3 x 2 channels |
| Outputs Safety, SIL 3, cat. 4 | 6 release circuits, 6 x electronic safe outputs |
| Safety communication | Safe Link |
