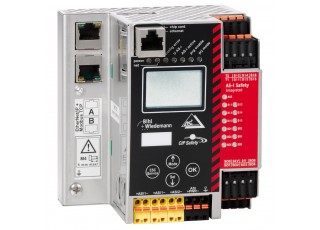

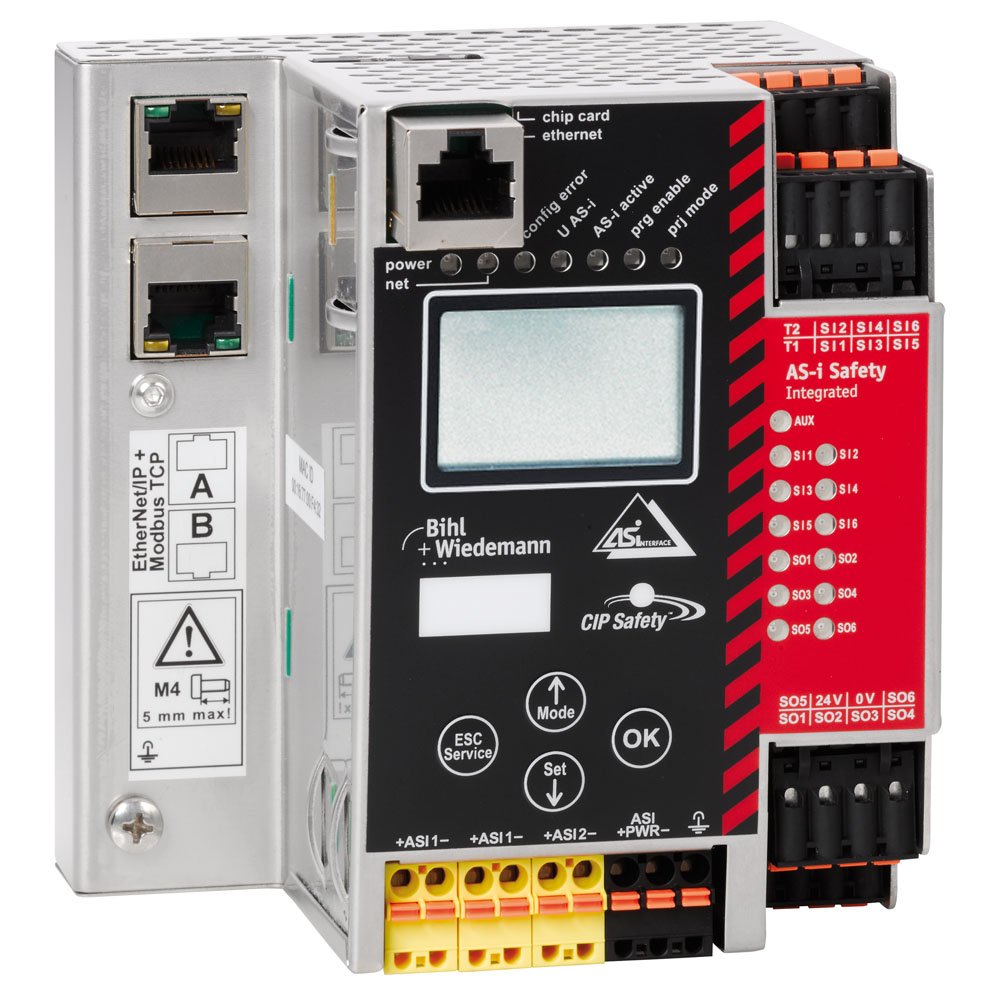

BWU3683 ASi-3 CIP Safety over EtherNet/IP + ModbusTCP Gateway with integrated Safety Monitor, 2 ASi masters
- Brand:Bihl+Wiedemann
- Product Code: BWU3683
- Availability: Out Of Stock
ASi-3 CIP Safety over EtherNet/IP + ModbusTCP Gateway with integrated Safety Monitor, 2 ASi masters, OPC UA server, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 64 safe outputs, 1984 safe outputs in max. configuration, CIP Safety via EtherNet/IP and Safe Link, diagnostic and configuration via Ethernet/IP + Modbus TCP or Ethernet diagnostic interface, OPC UA communication via Ethernet fieldbus interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
| Fieldbus interface | EtherNet/IP + ModbusTCP, OPC UA |
| ASi-5/ASi-3 | ASi-3 compatible |
| Number of ASi networks, number of ASi Master | 2 ASi networks, 2 ASi-3 Masters |
| Integrated decoupling, ASi current measurement in the gateway | yes, max. 4 A/ASi network |
| Inputs Safety, SIL 3, Cat. 4 | 3 x 2 channels |
| Outputs Safety, SIL 3, cat. 4 | 6 release circuits, 6 x electronic safe outputs |
| Safety communication | CIP Safety over EtherNet/IP + Safe Link |
