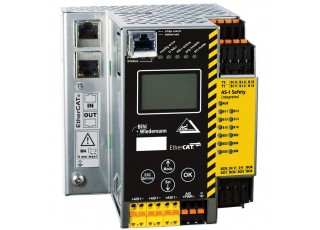

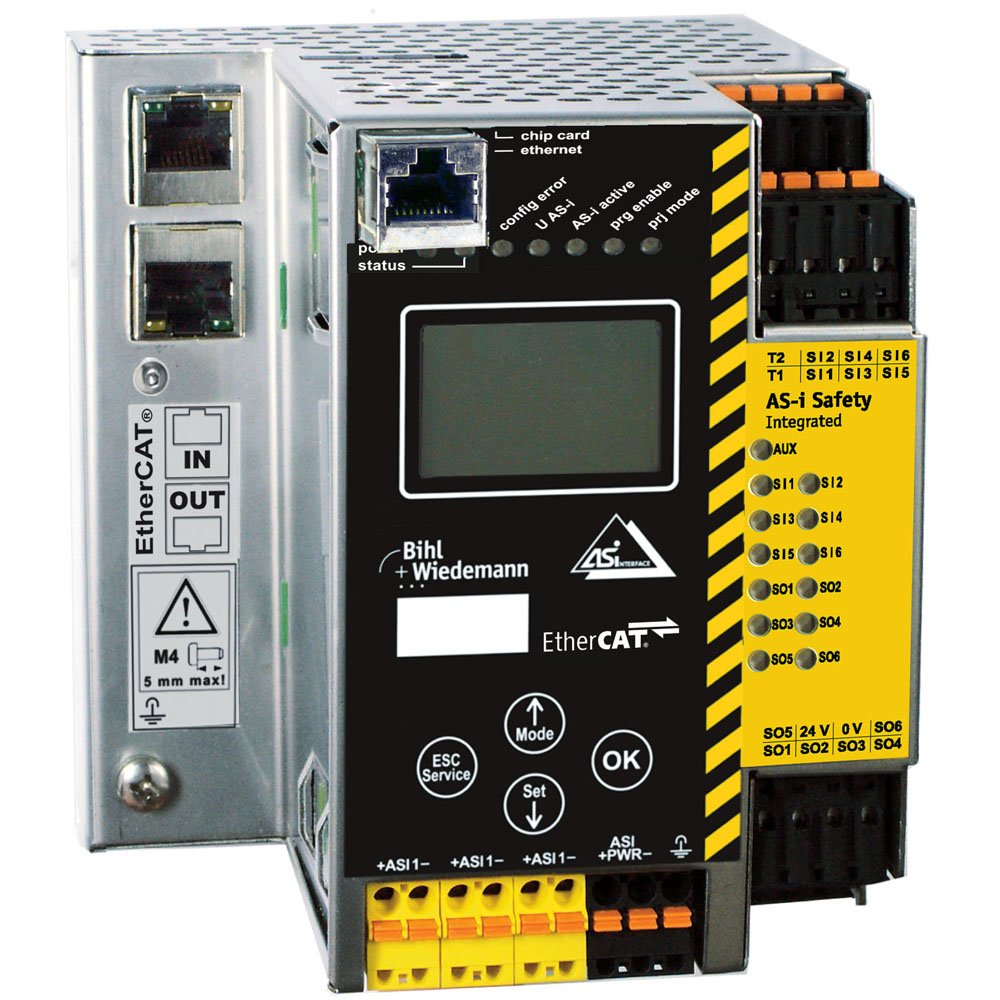

BWU2797 ASi-3 EtherCAT Gateway with integrated Safety Monitor, 1 ASi master
- Brand:Bihl+Wiedemann
- Product Code: BWU2797
- Availability: Out Of Stock
ASi-3 EtherCAT Gateway with integrated Safety Monitor, 1 ASi master, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 31 x 2 channels safe inputs, 1891 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 31 safe outputs, 991 safe outputs in max. configuration, Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
| Fieldbus interface | EtherCAT |
| ASi-5/ASi-3 | ASi-3 compatible |
| Number of ASi networks, number of ASi Master | 1 ASi network, 1 ASi-3 Master |
| Integrated decoupling, ASi current measurement in the gateway | yes, max. 4 A/ASi network |
| Inputs Safety, SIL 3, Cat. 4 | 3 x 2 channels |
| Outputs Safety, SIL 3, cat. 4 | 6 release circuits, 6 x electronic safe outputs |
| Safety communication | Safe Link |
