9537470000 WDU 6 SL/EN (50 pcs.)
- Brand:Weidmüller
- Product Code: 9537470000
- Availability: Out Of Stock

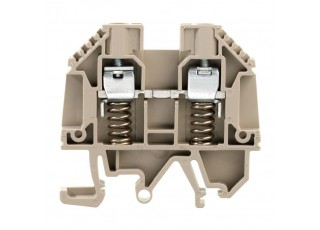

W-Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection
| Version | W-Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection |
| Order No. | 9537470000 |
| Type | WDU 6 SL/EN |
| GTIN (EAN) | 4008190026097 |
| Qty. | 50 items |
| 51.1 mm | |
| Depth (inches) | 2.012 inch |
| Depth including DIN rail | 55 mm |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 7.9 mm |
| Width (inches) | 0.311 inch |
| Net weight | 17.96 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Max. voltage (ATEX) | 440 V |
| Current (ATEX) | 40 A |
| Wire cross section max. (ATEX) | 6 mm² |
| Max. voltage (IECEX) | 440 V |
| Current (IECEX) | 40 A |
| Wire cross section max. (IECEX) | 6 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version | Screw connection with spring-loaded cable clamp for screwable cross-connection for plug-in cross-connector One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Blade size | 0.8 x 4.0 mm |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping screw | M 3.5 |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A5 |
| Number of connections | 2 |
| Stripping length | 16 mm |
| Tightening torque, max. | 1.6 Nm |
| Tightening torque, min. | 0.8 Nm |
| Type of connection | Screw connection |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Current size B (CSA) | 45 A |
| Current size C (CSA) | 45 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 20 AWG |
| Rail | TS 32 TS 35 |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 6 mm² |
| Rated voltage | 690 V |
| Rated DC voltage | 690 V |
| Rated current | 41 A |
| Current at maximum wires | 57 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 20 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 20 AWG |
| Current size C (UR) | 50 A |
| Current size D (UR) | 10 A |
| Voltage size C (UR) | 150 V |
| Voltage size D (UR) | 300 V |
