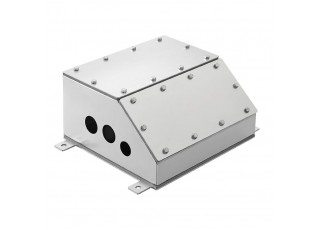

8000092462 KTB FS 302915 S2N2 ANGLEDBOX EDGE HV
- Brand:Weidmüller
- Product Code: 8000092462
- Availability: Out Of Stock
Enclosures, Height: 303 mm, Width: 290 mm, Depth: 157.5 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4301 (304), untreated, silver
| Version | Enclosures, Height: 303 mm, Width: 290 mm, Depth: 157.5 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4301 (304), untreated, silver |
| Order No. | 8000092462 |
| Type | KTB FS 302915 S2N2 ANGLEDBOX EDGE HV |
| GTIN (EAN) | 4099986672307 |
| Qty. | 1 items |
| 157.5 mm | |
| Depth (inches) | 6.201 inch |
| Height | 303 mm |
| Height (inches) | 11.929 inch |
| Width | 290 mm |
| Width (inches) | 11.417 inch |
| Net weight | 10,800 g |
| Operating temperature | -60 °C...135 °C |
| Flange plate | Yes |
| Gland plates | Bottom top |
| Impact resistance | 10 J version standard |
| Lid attachment | M6 hex-head slotted screws SW10 |
| Material | Stainless steel 1.4301 (304) |
| Material thickness of cover | 1.5 mm |
| Material thickness of enclosure | 1.5 mm |
| Material thickness of flange | 3 mm |
| Operating temperature, max. | 135 °C |
| Operating temperature, min. | -60 °C |
| Protection degree | IP66 IP67 |
| Seal material | Silicone |
| Standards | EN 61373 1b EN 45545 HL3 EN 15085 CL2 |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| HV 4000 | 1x4 |
| Fuse holder available | No |
| Fuse holder available | No |
| Drill holes side A | none |
| Drill holes side B | none |
| Material | Stainless steel 1.4301 (304) |
| Reference product |
|
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
