8000080477 KTB FS 262615 S2B2 TUBEBOX SAKK 10
- Brand:Weidmüller
- Product Code: 8000080477
- Availability: Out Of Stock

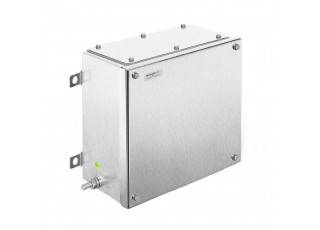

Klippon TB FS (Terminal Box - Fixing Screw), Enclosures, Height: 260 mm, Width: 260 mm, Depth: 150 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4301 (304), Brushed, silver
| Version | Klippon TB FS (Terminal Box - Fixing Screw), Enclosures, Height: 260 mm, Width: 260 mm, Depth: 150 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4301 (304), Brushed, silver |
| Order No. | 8000080477 |
| Type | KTB FS 262615 S2B2 TUBEBOX SAKK 10 |
| GTIN (EAN) | 4064675593188 |
| Qty. | 1 items |
| 150 mm | |
| Depth (inches) | 5.905 inch |
| Height | 260 mm |
| Height (inches) | 10.236 inch |
| Width | 260 mm |
| Width (inches) | 10.236 inch |
| Net weight | 7,000 g |
| Operating temperature | -60 °C...135 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 64dfc213-93f0-4c79-8ffa-c97fa9dcb873 |
| Flange plate | Yes |
| Gland plates | Bottom top |
| Impact resistance | 10 J version standard |
| Lid attachment | M6 hex-head slotted screws SW10 |
| Material | Stainless steel 1.4301 (304) |
| Material thickness of cover | 1.5 mm |
| Material thickness of enclosure | 1.5 mm |
| Material thickness of flange | 3 mm |
| Operating temperature, max. | 135 °C |
| Operating temperature, min. | -60 °C |
| Protection class (UL) | Type 3 Type 4X Type 12 |
| Protection degree | IP66 IP67 |
| Seal material | Silicone |
| Standards | EN 60068 ≤1m from the track |
| Surface finish | Brushed |
| UL 94 flammability rating | V-0 |
| SAKK 10 | 1x6 |
| Fuse holder available | Yes |
| Fuse holder available | No |
| Drill holes side A | none |
| Drill holes side B | none |
| Material | Stainless steel 1.4301 (304) |
| Reference product |
|
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
