8000054731 KLIPPON POK 252512 FH M32 E60
- Brand:Weidmüller
- Product Code: 8000054731
- Availability: Out Of Stock

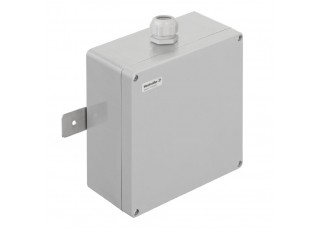

Klippon POK (polyester empty enclosure), Enclosures, Height: 250 mm, Width: 255 mm, Depth: 120 mm, Material: Glass fibre-reinforced polyester, untreated, grey, Light Grey
| Version | Klippon POK (polyester empty enclosure), Enclosures, Height: 250 mm, Width: 255 mm, Depth: 120 mm, Material: Glass fibre-reinforced polyester, untreated, grey, Light Grey |
| Order No. | 8000054731 |
| Type | KLIPPON POK 252512 FH M32 E60 |
| GTIN (EAN) | 4064675362333 |
| Qty. | 1 items |
| 120 mm | |
| Depth (inches) | 4.724 inch |
| Height | 250 mm |
| Height (inches) | 9.842 inch |
| Height of lowest version | 120 mm |
| Width | 255 mm |
| Width (inches) | 10.039 inch |
| Mounting dimension - height | 200 mm |
| Mounting dimension - width | 235 mm |
| Net weight | 4,787.19 g |
| Operating temperature | -20 °C...80 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1d28ada4-1634-4382-8635-45f6353a6574 |
| SAKK 10 | 8 |
| Fuse holder available | Yes |
| Drill holes side A | 1 x M32 |
| Drill holes side B | 2 x M32 |
| Material | Glass fibre-reinforced polyester |
| Product information | The fire rating up to E60 acc. to DIN 4102-12 depends on concrete configurations / installations (details see “Declaration of Manufacturer” in “Downloads”) The enclosure is used for functional integrity and serves as a distribution box for cables with 4 potentials. |
| Approval/Certificate/Document of Conformity | [MPA NRW Certificate - fire rated assembled boxes acc. to DIN 4102-12](https://mdcop.weidmueller.com/mediadelivery/asset/900_207499) [DoM DE PS2510 210414 001ISS00 - Fire Rated Boxes](https://mdcop.weidmueller.com/mediadelivery/asset/900_211350) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_216492) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000054731) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-02 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
