8000028397 STB 4 EXE
- Brand:Weidmüller
- Product Code: 8000028397
- Availability: Out Of Stock

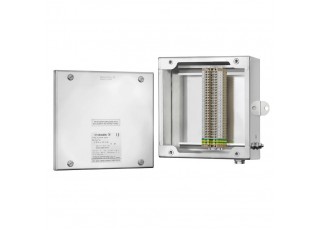

Klippon STB (Small Terminal Box), Terminal Box, stainless steel enclosure, Height: 250 mm, Width: 250 mm, Depth: 120 mm, Material: Stainless steel 1.4404 (316L), Mirror polished, silver
| Version | Klippon STB (Small Terminal Box), Terminal Box, stainless steel enclosure, Height: 250 mm, Width: 250 mm, Depth: 120 mm, Material: Stainless steel 1.4404 (316L), Mirror polished, silver |
| Order No. | 8000028397 |
| Type | STB 4 EXE |
| GTIN (EAN) | 4050118583809 |
| Qty. | 1 items |
| 120 mm | |
| Depth (inches) | 4.724 inch |
| Height | 250 mm |
| Height (inches) | 9.842 inch |
| Width | 250 mm |
| Width (inches) | 9.842 inch |
| Diameter | 8 mm |
| Mounting dimension - height | 125 mm |
| Mounting dimension - width | 275 mm |
| Wall thickness, min. | 1.5 mm |
| Wall thickness, max. | 1.5 mm |
| Net weight | 8,326.052 g |
| Ambient temperature | Tamb -40°C...+40°C |
| Certificate no. Terminal Box (ATEX) | IBExU 07ATEX1148 |
| Certificate no. Terminal Box (IECEx) | IECEx IBE09.0019 |
| Identification | Ex eb IIC T6 Gb |
| WDU 4 / ZDU 4 | 1x26 2 x PE |
| Drill holes side A | 6 x M25 |
| Drill holes side B | 6 x M25 1 x BDX |
| Drill holes side C | none |
| Drill holes side D | none |
| Material | Stainless steel 1.4404 (316L) |
| Material type plate | Polyester coated with aluminium |
| Approval/Certificate/Document of Conformity | [IBEXU07ATEX1148](https://mdcop.weidmueller.com/mediadelivery/asset/900_157719) [IECEXIBE09.0019](https://mdcop.weidmueller.com/mediadelivery/asset/900_157721) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| Approvals | CE; ATEX; IECEX |
