2900970000 SFX-VT 11/60 MM BL (1000 pcs.)
- Brand:Weidmüller
- Product Code: 2900970000
- Availability: Out Of Stock

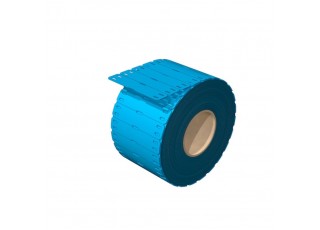

SlimFix, Conductor and cable markers, 7 - 40 mm, 60 x 13 mm, blue
| Version | SlimFix, Conductor and cable markers, 7 - 40 mm, 60 x 13 mm, blue |
| Order No. | 2900970000 |
| Type | SFX-VT 11/60 MM BL |
| GTIN (EAN) | 4099986658042 |
| Qty. | 1,000 items |
| 0.6 mm | |
| Depth (inches) | 0.024 inch |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 13 mm |
| Width (inches) | 0.512 inch |
| Length | 11 mm |
| Length (inches) | 0.433 inch |
| Net weight | 2 g |
| Operating temperature range | -55...105 °C |
| Colour | blue |
| Halogen | No |
| Length | 11 mm |
| Material | Polyolefine |
| Operating temperature range | -55...105 °C |
| Operating temperature range, max. | 105 °C |
| Operating temperature range, min. | -55 °C |
| Printed characters | without |
| Size of labelling field | 10.5 x 44 mm |
| Type of printing | neutral |
| UL 94 flammability rating | HB |
| Version | halogen-free |
| Width | 13 mm |
| Cable tie passage | Flat |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 7 - 40 mm |
| Conductor O.D., max. | 40 mm |
| Conductor O.D., min. | 7 mm |
| Cross-section for connected wire | 16 - 500 mm² |
| Halogen | No |
| Suitable cable tie | Plastic |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_290630) |
| White paper | [Fact Sheet PV Markierer](https://mdcop.weidmueller.com/mediadelivery/asset/900_290539) [Fact Sheet EN PV Markers](https://mdcop.weidmueller.com/mediadelivery/asset/900_290548) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
