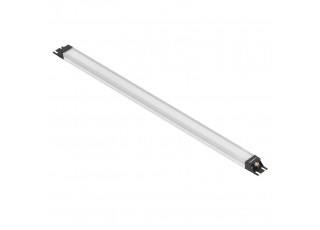

2899910000 WIL-SXXXX-FXSF-5700-X560-M8XX-S
- Brand:Weidmüller
- Product Code: 2899910000
- Availability: Out Of Stock
| Order No. | 2899910000 |
| Type | WIL-SXXXX-FXSF-5700-X560-M8XX-S |
| GTIN (EAN) | 4064675906964 |
| Qty. | 1 items |
| 30 mm | |
| Depth (inches) | 1.181 inch |
| Height | 17.5 mm |
| Height (inches) | 0.689 inch |
| Width | 560 mm |
| Width (inches) | 22.047 inch |
| Net weight | 432 g |
| Operating temperature | -20 - 70°C |
| Version | pin, straight |
| Connection thread | M8 |
| Number of poles | 4 |
| Coding | A-coded |
| Tightening torque | 0.6 Nm |
| Wiring | Pin 1: control white LED 24V DC Pin 2: NC Pin 3: GND(-) Pin 4: NC |
| Rated voltage | 24 V DC |
| Rated current | 562.5 mA |
| Power | 13.5 W |
| Dimmable | yes, stepless dimming |
| Electronic equipment on rolling stock | No |
| Shape of the LED module | Round |
| Type of connection | Pin connector |
| Light colour (CCT) | 5700K White |
| Light current | 1,266 lm |
| Emitting angle | 100 ° |
| Illumination level | 562 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Drill hole spacing | 616 mm |
| Protection degree | IP40 |
| Housing main material | hard anodised aluminium |
| Material of LED cover | PMMA |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293272) |
| User Documentation | [AINST-WIL-S GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_294282) [WIL-S Demontage](https://mdcop.weidmueller.com/mediadelivery/asset/900_314437) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
| ECLASS 9.1 | 27-11-06-35 |
| ECLASS 10.0 | 27-11-06-35 |
| ECLASS 11.0 | 27-11-06-35 |
| ECLASS 12.0 | 27-11-06-35 |
| ECLASS 13.0 | 27-11-06-35 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E354496 |
