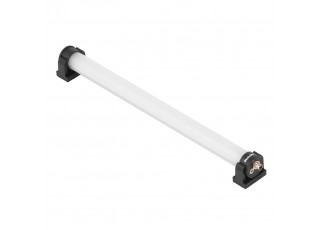

2899750000 WIL-EXXXX-RXPS-5700-X280-M8XX
- Brand:Weidmüller
- Product Code: 2899750000
- Availability: Out Of Stock
| Order No. | 2899750000 |
| Type | WIL-EXXXX-RXPS-5700-X280-M8XX |
| GTIN (EAN) | 4064675906803 |
| Qty. | 1 items |
| 35 mm | |
| Depth (inches) | 1.378 inch |
| Height | 35 mm |
| Height (inches) | 1.378 inch |
| Width | 280 mm |
| Width (inches) | 11.024 inch |
| Net weight | 191 g |
| Operating temperature | -20 - 45°C |
| Version | pin, straight |
| Connection thread | M8 |
| Number of poles | 4 |
| Coding | A-coded |
| Tightening torque | 0.6 Nm |
| Wiring | Pin 1: control white LED 12-30V DC Pin 2: dimmable 1.2-10V DC Pin 3: GND(-) Pin 4: NC |
| Rated voltage | 12…30 V DC |
| Power | 6.8 W |
| Dimmable | yes, stepless dimming |
| Electronic equipment on rolling stock | No |
| Shape of the LED module | Round |
| Type of connection | Pin connector |
| Light colour (CCT) | 5700K White |
| Light current | 819 lm |
| Emitting angle | 120 ° |
| Illumination level | 245 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Drill hole spacing | 289 mm |
| Protection degree | IP54 |
| Housing main material | hard anodised aluminium |
| Material of LED cover | PMMA |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305180) |
| User Documentation | [AINST-WIL-E GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_294278) [WIL-E Demontage](https://mdcop.weidmueller.com/mediadelivery/asset/900_314438) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
| ECLASS 9.1 | 27-11-06-35 |
| ECLASS 10.0 | 27-11-06-35 |
| ECLASS 11.0 | 27-11-06-35 |
| ECLASS 12.0 | 27-11-06-35 |
| ECLASS 13.0 | 27-11-06-35 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E354496 |
