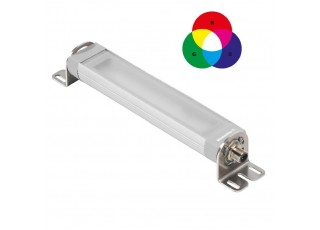

2899560000 WIL-LRGBW-RHPS-XXXX-X190SX-M12X-X0
- Brand:Weidmüller
- Product Code: 2899560000
- Availability: Out Of Stock
| Order No. | 2899560000 |
| Type | WIL-LRGBW-RHPS-XXXX-X190SX-M12X-X0 |
| GTIN (EAN) | 4064675906612 |
| Qty. | 1 items |
| 40 mm | |
| Depth (inches) | 1.575 inch |
| Height | 42 mm |
| Height (inches) | 1.654 inch |
| Width | 190 mm |
| Width (inches) | 7.48 inch |
| Net weight | 238 g |
| Operating temperature | -20 - 45°C |
| Version | pin, straight |
| Connection thread | M12 |
| Number of poles | 5 |
| Coding | A-coded |
| LED Modul is attachable | no |
| Wiring | Pin 1 - 4: control multicolor LED Pin 5: GND(-) |
| Rated voltage | 24 V DC |
| Power | 10.2 W |
| Electronic equipment on rolling stock | No |
| Type of connection | Pin connector |
| Light colour (CCT) | Red Green Blue White |
| Emitting angle | 100 ° |
| Illumination level | 98 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Drill hole spacing | 220 mm |
| Protection degree | IP67 |
| Housing main material | hard anodised aluminium |
| Material of LED cover | ESG |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293252) |
| User Documentation | [AINST-WIL-LRGBW GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_294281) [WIL-L Demontage](https://mdcop.weidmueller.com/mediadelivery/asset/900_314436) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
| ECLASS 9.1 | 27-11-06-35 |
| ECLASS 10.0 | 27-11-06-35 |
| ECLASS 11.0 | 27-11-06-35 |
| ECLASS 12.0 | 27-11-06-35 |
| ECLASS 13.0 | 27-11-06-35 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E354496 |
