2898800000 ALFS 4 2C 30-70V BK (50 pcs.)

Get information

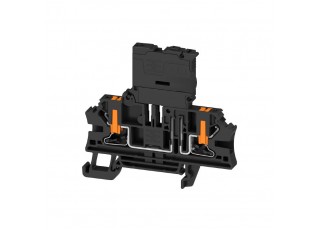

Fuse terminal, PUSH IN, 4 mm², 70 V, 6.3 A, G-Si. 5 x 20, black

Version	Fuse terminal, PUSH IN, 4 mm², 70 V, 6.3 A, G-Si. 5 x 20, black
Order No.	2898800000
Type	ALFS 4 2C 30-70V BK
GTIN (EAN)	4064675904403
Qty.	50 items

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material	Wemid
Colour	black
Colour of operational elements	orange
UL 94 flammability rating	V-0

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Blade size	0.6 x 3.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0.14 mm²
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	on side
Gauge to IEC 60947-1	A4
Number of connections	2
Stripping length	12 mm
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Cartridge fuse	G-Si. 5 x 20
Display	LED
Fuse holder (cartridge holder)	Pivoting
Operating voltage, max.	70 V

Rail	TS 35
Standards	IEC 60947-7-3
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 26

Rated cross-section	4 mm²
Rated voltage	70 V
Rated voltage to adjoining terminal	500 V
Rated DC voltage	70 V
Rated current	6.3 A
Current at maximum wires	6.3 A
Standards	IEC 60947-7-3
Rated impulse withstand voltage	4 kV
Pollution severity	3
Surge voltage category	III

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_311463)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305157)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
