2898780000 ALFS 4 2C BK (50 pcs.)
- Brand:Weidmüller
- Product Code: 2898780000
- Availability: Out Of Stock

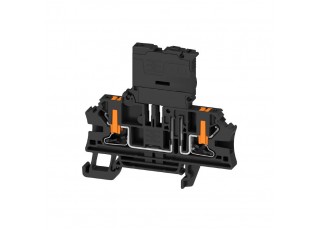

Fuse terminal, PUSH IN, 4 mm², 500 V, 6.3 A, G-Si. 5 x 20, black
| Version | Fuse terminal, PUSH IN, 4 mm², 500 V, 6.3 A, G-Si. 5 x 20, black |
| Order No. | 2898780000 |
| Type | ALFS 4 2C BK |
| GTIN (EAN) | 4064675904380 |
| Qty. | 50 items |
| 68 mm | |
| Depth (inches) | 2.677 inch |
| Height | 73.5 mm |
| Height (inches) | 2.894 inch |
| Width | 6.1 mm |
| Width (inches) | 0.24 inch |
| Net weight | 17.56 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | black |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Open sides | right |
| Snap-on | Yes |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A4 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Cartridge fuse | G-Si. 5 x 20 |
| Display | Without LED |
| Fuse holder (cartridge holder) | Pivoting |
| Operating voltage, max. | 250 V |
| Rail | TS 35 |
| Standards | IEC 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 4 mm² |
| Rated voltage | 500 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 6.3 A |
| Current at maximum wires | 6.3 A |
| Standards | IEC 60947-7-3 |
| Rated impulse withstand voltage | 4 kV |
| Pollution severity | 3 |
| Surge voltage category | III |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_311461) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305155) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000899 |
| ETIM 7.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| ETIM 9.0 | EC000899 |
| ECLASS 9.0 | 27-14-11-16 |
| ECLASS 9.1 | 27-14-11-16 |
| ECLASS 10.0 | 27-14-11-16 |
| ECLASS 11.0 | 27-14-11-16 |
| ECLASS 12.0 | 27-14-11-16 |
| ECLASS 13.0 | 27-25-01-13 |
| Approvals |  |
