2885690000 THM SE-P 25 RT/WS (250 pcs.)
- Brand:Weidmüller
- Product Code: 2885690000
- Availability: Out Of Stock

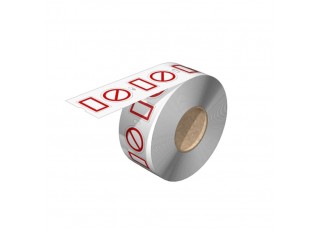

Device markers, Device markers, 25 x 25 mm, red-white
| Version | Device markers, Device markers, 25 x 25 mm, red-white |
| Order No. | 2885690000 |
| Type | THM SE-P 25 RT/WS |
| GTIN (EAN) | 4064675854296 |
| Qty. | 250 items |
| 0.1 mm | |
| Depth (inches) | 0.004 inch |
| Height | 25 mm |
| Height (inches) | 0.984 inch |
| Width | 25 mm |
| Width (inches) | 0.984 inch |
| Net weight | 2 g |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | red-white |
| Halogen | Yes |
| Material | Vinyl film |
| Operating temperature range, max. | 110 °C |
| Operating temperature range, min. | -50 °C |
| Printed characters | neutral |
| UL 94 flammability rating | V-0 |
| Width | 25 mm |
| Halogen | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_274739) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
