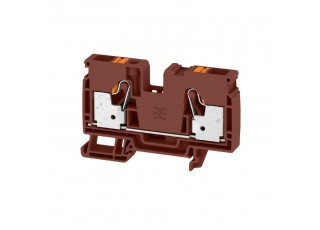

PUSH IN, 10 mm², 1000 V, 57 A, brown

General ordering data

Version	PUSH IN, 10 mm², 1000 V, 57 A, brown
Order No.	2876690000
Type	A2C 10 BR
GTIN (EAN)	4064675664925
Qty.	25 items

Dimensions and weights

	51.5 mm
Depth (inches)	2.028 inch
Height	80.5 mm
Height (inches)	3.169 inch
Width	10 mm
Width (inches)	0.394 inch
Net weight	32.315 g

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material	Wemid
Colour	brown
Colour of operational elements	orange
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV16ATEX7909U
Certificate No. (IECEX)	IECEXTUR16.0036U
Max. voltage (ATEX)	550 V
Current (ATEX)	52 A
Wire cross section max. (ATEX)	10 mm²
Max. voltage (IECEX)	550 V
Current (IECEX)	52 A
Wire cross section max. (IECEX)	0.5 mm²

System specifications

End cover plate required	Yes
Number of levels	1
Number of clamping points per level	2
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	Yes
Snap-on	No
Type of fixing	Snap-on
Type of mounting	TS 35

Conductors for clamping (rated connection)

Clamping range, max.	16 mm²
Connection cross-section, stranded, max.	16 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Number of connections	2
Tube length for twin wire-end ferrule	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm²
Twin wire-end ferrules, max.	4 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type of connection	PUSH IN
Wire connection cross section, finely stranded, max.	16 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	10 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Rated cross-section	10 mm²
Rated voltage	1,000 V
Rated DC voltage	1,000 V
Rated current	57 A
Volume resistance according to IEC 60947-7-x	0.56 mΩ
Pollution severity	3
Surge voltage category	III

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_292887)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2876690000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CURUSEX](/picture/CURUSEX.gif) ![IECEXTUR](/picture/IECEXTUR.gif) ![KOSHAEX](/picture/KOSHAEX.gif) ![TUEVNATEX](/picture/TUEVNATEX.gif) ![UKCA](/picture/UKCA.gif)
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURusEX)	E184763
