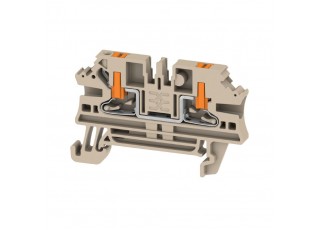

2847200000 AL2C 2.5 (100 pcs.)
- Brand:Weidmüller
- Product Code: 2847200000
- Availability: Out Of Stock
Feed-through terminal block, PUSH IN, 2.5 mm², 800 V, 24 A, Number of connections: 2
| Version | Feed-through terminal block, PUSH IN, 2.5 mm², 800 V, 24 A, Number of connections: 2 |
| Order No. | 2847200000 |
| Type | AL2C 2.5 |
| GTIN (EAN) | 4064675456643 |
| Qty. | 100 items |
| 36.5 mm | |
| Depth (inches) | 1.437 inch |
| Height | 57 mm |
| Height (inches) | 2.244 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 3.541 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | dark beige |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | TUEV22ATEX8826U |
| Certificate No. (IECEX) | IECEXTUR22.0019U |
| Max. voltage (ATEX) | 550 V |
| Current (ATEX) | 21.5 A |
| Wire cross section max. (ATEX) | 4 mm² |
| Max. voltage (IECEX) | 550 V |
| Current (IECEX) | 21.5 A |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Installation advice | (installation angle bracket included in delivery) |
| Open sides | right |
| Snap-on | Yes |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 2.5 mm² |
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Twin wire-end ferrules, max. | 0.75 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Installation advice | (installation angle bracket included in delivery) |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 24 A |
| Current at maximum wires | 24 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size B (cURus) | 20 A |
| Current size C (cURus) | 20 A |
| Current size D (cURus) | 5 A |
| Voltage size B (cURus) | 600 V |
| Voltage size C (cURus) | 600 V |
| Voltage size D (cURus) | 600 V |
| Approval/Certificate/Document of Conformity | [Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_293857) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293851) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293852) [CB Certificate and Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_303977) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_251075) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2847200000) |
| User Documentation | [NTI AL2C 2.5](https://mdcop.weidmueller.com/mediadelivery/asset/900_293854) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| Approvals |      |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
