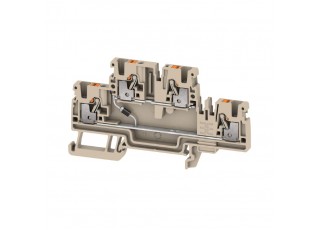

Component terminal block, PUSH IN, 2.5 mm², 500 V, 1.5 A, 1N5408, dark beige

General ordering data

Version	Component terminal block, PUSH IN, 2.5 mm², 500 V, 1.5 A, 1N5408, dark beige
Order No.	2820640000
Type	A2T 2.5 EM1 D3/2
GTIN (EAN)	4064675357230
Qty.	50 items

Dimensions and weights

	50.5 mm
Depth (inches)	1.988 inch
Height	90 mm
Height (inches)	3.543 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	13.225 g

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	c6099607-b1cd-4fc8-8f5b-8c2defa73093

Material	Wemid
Colour	dark beige
Colour of operational elements	orange
UL 94 flammability rating	V-0

System specifications

End cover plate required	Yes
Number of levels	2
Number of clamping points per level	2
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Type of mounting	Snap-on

Component diode

Type diode:

1N5408
Forward current:

3 A
Reverse voltage:

1,000 V
Forward voltage:

0.7 V

Conductors for clamping (rated connection)

Clamping range, max.	4 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Number of connections	4
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 6 mm nominal: 5 mm max.: 8 mm Cross-section for conductor connection: nominal: 0.25 mm² min.: 0.14 mm² max.: 0.34 mm² Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0.5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: min.: 6 mm nominal: 5 mm max.: 8 mm Cross-section for conductor connection: nominal: 0.25 mm² min.: 0.14 mm² max.: 0.34 mm² Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0.5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Type of connection	PUSH IN
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Rated cross-section	2.5 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	1.5 A
Current at maximum wires	0.5 A
Pollution severity	3
Surge voltage category	III

Approval/Certificate/Document of Conformity	[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_256579)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2820640000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000903
ETIM 7.0	EC000903
ETIM 8.0	EC000903
ETIM 9.0	EC000903
ECLASS 9.0	27-14-11-27
ECLASS 9.1	27-14-11-47
ECLASS 10.0	27-14-11-27
ECLASS 11.0	27-14-11-27
ECLASS 12.0	27-14-11-27
ECLASS 13.0	27-25-01-14

Approvals
