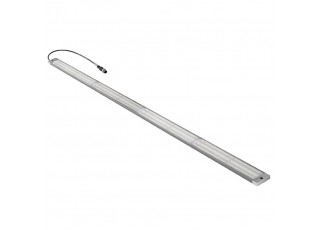

2796070000 WIL-LWXXXX-2700D024-860SXX0.3BM12GXXXX
- Brand:Weidmüller
- Product Code: 2796070000
- Availability: Out Of Stock
| Order No. | 2796070000 |
| Type | WIL-LWXXXX-2700D024-860SXX0.3BM12GXXXX |
| GTIN (EAN) | 4064675123200 |
| Qty. | 1 items |
| 40 mm | |
| Depth (inches) | 1.575 inch |
| Height | 8 mm |
| Height (inches) | 0.315 inch |
| Width | 860 mm |
| Width (inches) | 33.858 inch |
| Net weight | 650 g |
| Operating temperature | -20 - 60°C |
| EPREL Registration number | 1324793 |
| Cable Material | PUR |
| Sheathing colour | black |
| Cable length | 0.3 m |
| Version | pin, straight |
| Connection thread | M12 |
| Number of poles | 2 |
| Coding | A-coded |
| Tightening torque | 0.8 Nm |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Rated voltage | 24 V DC |
| Rated current | 1.21 A |
| Power | 29.1 W |
| Dimmable | Yes |
| Electronic equipment on rolling stock | No |
| Recommended class according to UL for use of an power supply | NEC Class 2 |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 168 |
| Light colour (CCT) | 2700K Warm white |
| Light current | 2,898 lm |
| Emitting angle | 40 ° |
| Illumination level | 996 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |
| Drill hole spacing | 845 mm |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Efficiency class (according to EU Directive No. 874/2012) | F |
| Housing main material | hard anodised aluminium |
| Encapsulation compound | PUR V0 |
| Threaded ring material | PA |
| Material of end caps | Diecast zinc nickel-plated |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_303629) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
| ECLASS 9.1 | 27-11-06-35 |
| ECLASS 10.0 | 27-11-06-35 |
| ECLASS 11.0 | 27-11-06-35 |
| ECLASS 12.0 | 27-11-06-35 |
| ECLASS 13.0 | 27-11-06-35 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E354496 |
