2772440000 SF-DT 4.5/21 MC NE BL (96 pcs.)
- Brand:Weidmüller
- Product Code: 2772440000
- Availability: Out Of Stock

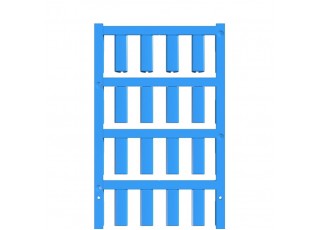

SlimFix, Conductor and cable markers, 4.1 - 5.5 mm, 21 x 7.4 mm, blue
| Version | SlimFix, Conductor and cable markers, 4.1 - 5.5 mm, 21 x 7.4 mm, blue |
| Order No. | 2772440000 |
| Type | SF-DT 4.5/21 MC NE BL |
| GTIN (EAN) | 4064675034643 |
| Qty. | 96 items |
| 6.5 mm | |
| Depth (inches) | 0.256 inch |
| Height | 21 mm |
| Height (inches) | 0.827 inch |
| Width | 7.4 mm |
| Width (inches) | 0.291 inch |
| Net weight | 0.8 g |
| Operating temperature range | -40...100 °C |
| Colour | blue |
| Halogen | No |
| Material | Polyethylene |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 21 x 7.4 mm |
| Type of printing | neutral |
| UL 94 flammability rating | HB |
| Width | 7.4 mm |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Conductor O.D. | 4.1 - 5.5 mm |
| Conductor O.D., max. | 5.5 mm |
| Conductor O.D., min. | 4.1 mm |
| Cross-section for connected wire | 4 - 6 mm² |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
