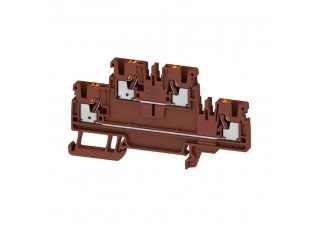

2744230000 A2T 2.5 BR (50 pcs.)

Brand:Weidmüller
Product Code: 2744230000
Availability: Out Of Stock

Get information

Feed-through terminal, Double-tier terminal, PUSH IN, 2.5 mm², 800 V, 24 A, brown

Version	Feed-through terminal, Double-tier terminal, PUSH IN, 2.5 mm², 800 V, 24 A, brown
Order No.	2744230000
Type	A2T 2.5 BR
GTIN (EAN)	4064675270225
Qty.	50 items

Dimensions and weights

	50.5 mm
Depth (inches)	1.988 inch
Height	90 mm
Height (inches)	3.543 inch
Width	5.1 mm
Width (inches)	0.201 inch
Net weight	13.17 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	brown
Colour of operational elements	orange
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV16ATEX7909U
Certificate No. (IECEX)	IECEXTUR16.0036U
Max. voltage (ATEX)	550 V
Current (ATEX)	21 A
Wire cross section max. (ATEX)	2.5 mm²
Max. voltage (IECEX)	550 V
Current (IECEX)	21 A
Wire cross section max. (IECEX)	2.5 mm²

System specifications

End cover plate required	Yes
Number of potentials	2
Number of levels	2
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	Yes
Open sides	right
Snap-on	Yes
Type of mounting	TS 35

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.14 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A3
Number of connections	4
Stripping length	10 mm
Tube length for twin wire-end ferrule	Tube length: nominal: 5 mm min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0.5 mm² nominal: 0.25 mm² max.: 0.75 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: nominal: 5 mm min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0.5 mm² nominal: 0.25 mm² max.: 0.75 mm² Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0.5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: nominal: 5 mm min.: 8 mm max.: 12 mm Cross-section for conductor connection: min.: 0.5 mm² nominal: 0.25 mm² max.: 0.75 mm² Tube length: min.: 6 mm max.: 10 mm Cross-section for conductor connection: min.: 0.5 mm² max.: 1 mm² Tube length: min.: 7 mm max.: 12 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Twin wire-end ferrules, max.	0.75 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

General

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 28

Rating data

Rated cross-section	2.5 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	24 A
Current at maximum wires	24 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3
Surge voltage category	III

Downloads

Approval/Certificate/Document of Conformity	[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153795) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_274631)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2744230000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2744230000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-02

Approvals

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CURUSEX](/picture/CURUSEX.gif) ![IECEXTUR](/picture/IECEXTUR.gif) ![KOSHAEX](/picture/KOSHAEX.gif) ![TUEVNATEX](/picture/TUEVNATEX.gif) ![UKCA](/picture/UKCA.gif)
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURusEX)	E184763
