2737720000 CC-DT 30/60 MC NE BL (30 pcs.)
- Brand:Weidmüller
- Product Code: 2737720000
- Availability: Out Of Stock

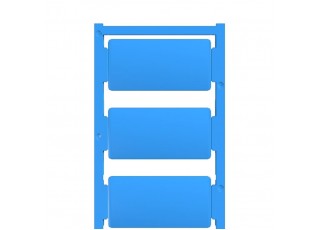

ClipCard, Device markers, 30 x 60 mm, blue
| Version | ClipCard, Device markers, 30 x 60 mm, blue |
| Order No. | 2737720000 |
| Type | CC-DT 30/60 MC NE BL |
| GTIN (EAN) | 4064675211174 |
| Qty. | 30 items |
| 1.2 mm | |
| Depth (inches) | 0.047 inch |
| Height | 30 mm |
| Height (inches) | 1.181 inch |
| Width | 60 mm |
| Width (inches) | 2.362 inch |
| Net weight | 4.195 g |
| Operating temperature range | -40...100 °C |
| Colour | blue |
| Detectible in accordance with Rondotest | 4.7 mm Al |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | neutral |
| Recommended industries | Food processing industry |
| UL 94 flammability rating | HB |
| Width | 60 mm |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
