2731380000 TS 35X7.5/1.0 2M/CU/BK (2 pcs.)

2731380000 TS 35X7.5/1.0 2M/CU/BK (2 pcs.)

Brand:Weidmüller
Product Code: 2731380000
Availability: Out Of Stock

Get information

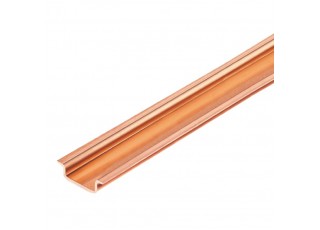

Rail, Copper, untreated

General ordering data

Version	Rail, Copper, untreated
Order No.	2731380000
Type	TS 35X7.5/1.0 2M/CU/BK
GTIN (EAN)	4050118810882
Qty.	2

Dimensions and weights

	7.5 mm
Depth (inches)	0.295 inch
Height	35 mm
Height (inches)	1.378 inch
Width	2,000 mm
Width (inches)	78.74 inch
Net weight	540 g

Length of the terminal rail	min.: 5 mm nominal: 11 mm max.: 2,000 mm
Material	Copper
Permitted thermal current for PEN function, max.	150 A
Pre-punched mounting rail	No
Short circuit strength corresponds to E-Cu wire	50 mm²
Short-time withstand current per second according to IEC 60947-7-2	6 kA
Slit gap	min.: 5 mm nominal: 11 mm max.: 2,000 mm
Slit length	min.: 5 mm nominal: 11 mm max.: 2,000 mm
Slit width	min.: 5 mm nominal: 11 mm max.: 2,000 mm
Standards	DIN EN 60715
Surface finish	untreated
Thickness	1 mm

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_306249)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001285
ETIM 7.0	EC001285
ETIM 8.0	EC001285
ETIM 9.0	EC001285
ECLASS 9.0	27-40-06-02
ECLASS 9.1	27-40-06-02
ECLASS 10.0	27-40-06-02
ECLASS 11.0	27-40-06-02
ECLASS 12.0	27-40-06-02
ECLASS 13.0	27-40-06-02

ROHS

Conform
