2713810000 THM MT30X 18/6.5 SI (10000 pcs.)
- Brand:Weidmüller
- Product Code: 2713810000
- Availability: Out Of Stock

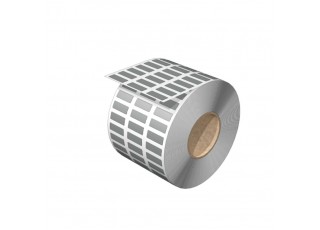

THM, Device markers, 6.5 x 18 mm, silver
| Version | THM, Device markers, 6.5 x 18 mm, silver |
| Order No. | 2713810000 |
| Type | THM MT30X 18/6.5 SI |
| GTIN (EAN) | 4050118819601 |
| Qty. | 10,000 items |
| 0.05 mm | |
| Depth (inches) | 0.002 inch |
| Height | 6.5 mm |
| Height (inches) | 0.256 inch |
| Width | 18 mm |
| Width (inches) | 0.709 inch |
| Net weight | 0.026 g |
| Operating temperature range | -40...150 °C |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | silver |
| Halogen | No |
| Material | Polyester |
| Number of markers per combination | 1 Label reel = Device markers |
| Number per roll | 10000 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive halogen-free |
| Width | 18 mm |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
