2712020000 THM GEW 20/10 WS (5000 pcs.)
- Brand:Weidmüller
- Product Code: 2712020000
- Availability: Out Of Stock

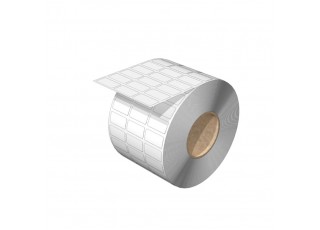

THM, Device markers, 10 x 20 mm, white
| Version | THM, Device markers, 10 x 20 mm, white |
| Order No. | 2712020000 |
| Type | THM GEW 20/10 WS |
| GTIN (EAN) | 4050118749915 |
| Qty. | 5,000 items |
| 0.15 mm | |
| Depth (inches) | 0.006 inch |
| Height | 10 mm |
| Height (inches) | 0.394 inch |
| Width | 20 mm |
| Width (inches) | 0.787 inch |
| Net weight | 0.084 g |
| Operating temperature range | -29...80 °C |
| Adhesive | Natural rubber adhesive |
| Approval acc. to UL 969 | No |
| Colour | white |
| Halogen | No |
| Material | Cotton fabric |
| Number of markers per combination | 1 Label reel = Device markers |
| Number per roll | 5000 |
| Operating temperature range | -29...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -29 °C |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 20 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_313285) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
