2697900000 A2C 10 OR (25 pcs.)

Brand:Weidmüller
Product Code: 2697900000
Availability: Out Of Stock

Get information

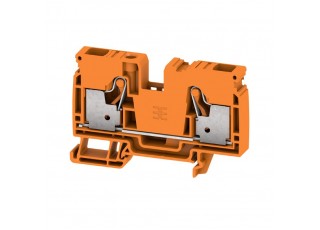

Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, orange

Version	Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, orange
Order No.	2697900000
Type	A2C 10 OR
GTIN (EAN)	4050118809299
Qty.	25 items

Dimensions and weights

	51.5 mm
Depth (inches)	2.028 inch
Depth including DIN rail	52.5 mm
Height	80.5 mm
Height (inches)	3.169 inch
Width	10 mm
Width (inches)	0.394 inch
Net weight	35.92 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material data

Material	Wemid
Colour	orange
Colour of operational elements	orange
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV16ATEX7909U
Certificate No. (IECEX)	IECEXTUR16.0036U
Max. voltage (ATEX)	550 V
Current (ATEX)	52 A
Wire cross section max. (ATEX)	10 mm²
Max. voltage (IECEX)	550 V
Current (IECEX)	52 A
Wire cross section max. (IECEX)	0.5 mm²

System specifications

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Rail	TS 35

Additional technical data

Installation advice	Rail
Open sides	right
Snap-on	No
Type of fixing	Snap-on
Type of mounting	TS 35
With snap-in pegs	No

Conductors for clamping (rated connection)

Blade size	1.0 x 5.5 mm
Clamping range, max.	16 mm²
Clamping range, min.	0.5 mm²
Connection cross-section, stranded, max.	16 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A6
Number of connections	2
Stripping length	18 mm
Tube length for twin wire-end ferrule	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: min.: 18 mm nominal: 18 mm Cross-section for conductor connection: min.: 1.5 mm² max.: 10 mm²
Twin wire-end ferrules, max.	4 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	16 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	10 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

General

Installation advice	Rail
Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 20

Rating data

Rated cross-section	10 mm²
Rated voltage	1,000 V
Rated DC voltage	1,000 V
Rated current	57 A
Current at maximum wires	57 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0.56 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1.82 W
Pollution severity	3
Surge voltage category	III

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_103915) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253939) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152120) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253942) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_103326) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284539) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205898)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2697900000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2697900000)
User Documentation	[User Manual AXC 1.5-16](https://mdcop.weidmueller.com/mediadelivery/asset/900_229201)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01

Approvals

Approvals	![CCCEX](/picture/CCCEX.gif) ![CE](/picture/CE.gif) ![CURUSEX](/picture/CURUSEX.gif) ![DETNORVER](/picture/DETNORVER.gif) ![IECEXTUR](/picture/IECEXTUR.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif) ![KOSHAEX](/picture/KOSHAEX.gif) ![TUEVNATEX](/picture/TUEVNATEX.gif) ![UKEX](/picture/UKEX.gif) ![UKCA](/picture/UKCA.gif)
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURusEX)	E184763
