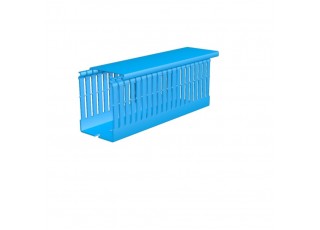

2662610000 CD 80X25 4/6 BL (32 pcs.)
- Brand:Weidmüller
- Product Code: 2662610000
- Availability: Out Of Stock
80 mm x 25 mm, 4.00 mm x 6.00 mm, 2000 mm
| Version | 80 mm x 25 mm, 4.00 mm x 6.00 mm, 2000 mm |
| Order No. | 2662610000 |
| Type | CD 80X25 4/6 BL |
| GTIN (EAN) | 4050118685176 |
| Qty. | 32 |
| Height | 80 mm |
| Height (inches) | 3.15 inch |
| Width | 25 mm |
| Width (inches) | 0.984 inch |
| Length | 2,000 mm |
| Length (inches) | 78.74 inch |
| Net weight | 456 g |
| Operating temperature range | -5...60 °C |
| Colour | blue |
| Halogen | Yes |
| Included in delivery | Cable duct Lid |
| Lid | Yes |
| Material | PVC / lead-free |
| Operating temperature range | -5...60 °C |
| Slit gap | 6 mm |
| Slit width | 4 mm |
| Standards | In accordance with DIN EN 50085 |
| UL 94 flammability rating | V-0 |
| Version of side panel | slotted |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000012 |
| ETIM 7.0 | EC000012 |
| ETIM 8.0 | EC000012 |
| ETIM 9.0 | EC000012 |
| ECLASS 9.1 | 27-40-07-03 |
| ECLASS 10.0 | 27-40-07-03 |
| ECLASS 11.0 | 27-40-07-03 |
| ECLASS 12.0 | 27-40-07-03 |
| ECLASS 13.0 | 27-40-07-03 |
| ROHS | Conform |
