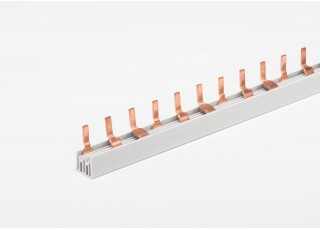

2658530000 S-3L-160/10 (20 pcs.)
- Brand:Weidmüller
- Product Code: 2658530000
- Availability: Out Of Stock
| Order No. | 2658530000 |
| Type | S-3L-160/10 |
| GTIN (EAN) | 4050118671995 |
| Qty. | 20 items |
| 15 mm | |
| Depth (inches) | 0.591 inch |
| Height | 27.5 mm |
| Height (inches) | 1.083 inch |
| Width | 160 mm |
| Width (inches) | 6.299 inch |
| Net weight | 14.55 g |
| Colour | grey |
| Explosion-tested version | No |
| Pitch in mm (P) | 17.8 mm |
| Number of poles | 9 |
| Rated cross-section | 10 mm² |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165142) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_313282) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| Approvals |  |
| ROHS | Conform |
