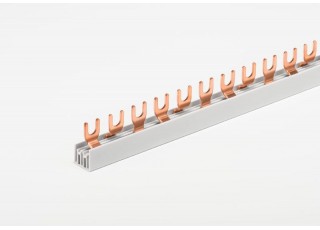

2658410000 G-3L-320/10 C (20 pcs.)
- Brand:Weidmüller
- Product Code: 2658410000
- Availability: Out Of Stock
| Order No. | 2658410000 |
| Type | G-3L-320/10 C |
| GTIN (EAN) | 4050118672114 |
| Qty. | 20 items |
| 15.4 mm | |
| Depth (inches) | 0.606 inch |
| Height | 31 mm |
| Height (inches) | 1.22 inch |
| Width | 320 mm |
| Width (inches) | 12.598 inch |
| Net weight | 33.8 g |
| Colour | grey |
| Pitch in mm (P) | 17.8 mm |
| Number of poles | 18 |
| Rated cross-section | 10 mm² |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165116) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| Approvals |  |
| ROHS | Conform |
