2621480000 SFX-DT 11/60 MM BL (1000 pcs.)
- Brand:Weidmüller
- Product Code: 2621480000
- Availability: Out Of Stock

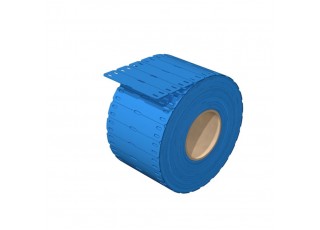

SlimFix, Conductor and cable markers, 7 - , 60 x 13 mm, blue
| Version | SlimFix, Conductor and cable markers, 7 - , 60 x 13 mm, blue |
| Order No. | 2621480000 |
| Type | SFX-DT 11/60 MM BL |
| GTIN (EAN) | 4050118625561 |
| Qty. | 1,000 items |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 13 mm |
| Width (inches) | 0.512 inch |
| Net weight | 0.001 g |
| Operating temperature range | -30...65 °C |
| Continuous operating temp., min. | -30 |
| Continuous operating temp., max. | 65 |
| Colour | blue |
| Halogen | No |
| Material | Polyethylene |
| Operating temperature range | -30...65 °C |
| Operating temperature range, max. | 65 °C |
| Operating temperature range, min. | -30 °C |
| Size of labelling field | 10.5 x 44 mm |
| UL 94 flammability rating | HB |
| Version | halogen-free |
| Width | 13 mm |
| Cable tie passage | Flat |
| Conductor O.D. | 7 - |
| Conductor O.D., min. | 7 mm |
| Halogen | No |
| Suitable cable tie | Plastic |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_248875) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2621480000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2621480000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2621480000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
