2619980000 EL CC-RAIL MM GE 30M
- Brand:Weidmüller
- Product Code: 2619980000
- Availability: Out Of Stock

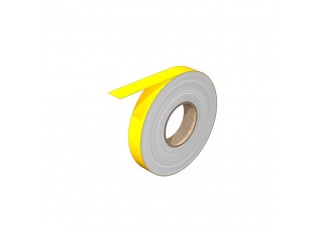

THM, Device markers, 15 x , yellow
| Version | THM, Device markers, 15 x , yellow |
| Order No. | 2619980000 |
| Type | EL CC-RAIL MM GE 30M |
| GTIN (EAN) | 4050118626100 |
| Qty. | 1 items |
| 0.08 mm | |
| Depth (inches) | 0.003 inch |
| Height | 15 mm |
| Height (inches) | 0.591 inch |
| Length | 30,000 mm |
| Length (inches) | 1,181.1 inch |
| Net weight | 125 g |
| Operating temperature range | -50...100 °C |
| Approval acc. to UL 969 | Yes |
| Colour | yellow |
| Halogen | No |
| Length | 30,000 mm |
| Material | Polypropylene |
| Number per roll | 1 |
| Operating temperature range | -50...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -50 °C |
| UL 94 flammability rating | HB |
| Version | halogen-free |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2619980000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2619980000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
