2602720000 SFX-DT 9/24 MC NE BL (160 pcs.)
- Brand:Weidmüller
- Product Code: 2602720000
- Availability: Out Of Stock

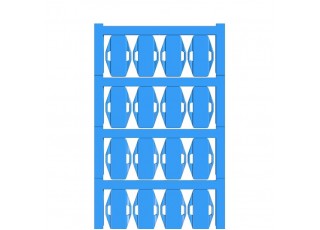

Conductor and cable markers, 7 - 40 mm, 24 x 15 mm, blue
| Version | Conductor and cable markers, 7 - 40 mm, 24 x 15 mm, blue |
| Order No. | 2602720000 |
| Type | SFX-DT 9/24 MC NE BL |
| GTIN (EAN) | 4050118613247 |
| Qty. | 160 items |
| 0.8 mm | |
| Depth (inches) | 0.031 inch |
| Height | 24 mm |
| Height (inches) | 0.945 inch |
| Width | 15 mm |
| Width (inches) | 0.591 inch |
| Net weight | 0.644 g |
| Operating temperature range | -40...100 °C |
| Colour | blue |
| Detectible in accordance with Rondotest | 4.7 mm Al |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | neutral |
| Recommended industries | Food processing industry |
| Size of labelling field | 23.9 x 9 mm |
| UL 94 flammability rating | HB |
| Version | Installation with cable ties |
| Width | 15 mm |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 7 - 40 mm |
| Conductor O.D., max. | 40 mm |
| Conductor O.D., min. | 7 mm |
| Cross-section for connected wire | 16 - 500 mm² |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2602720000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2602720000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
