2602340000 WDU 16N WS (50 pcs.)
- Brand:Weidmüller
- Product Code: 2602340000
- Availability: Out Of Stock

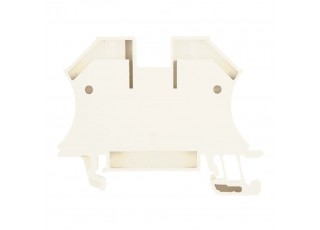

Feed-through terminal, 16 mm², 690 V, white
| Version | Feed-through terminal, 16 mm², 690 V, white |
| Order No. | 2602340000 |
| Type | WDU 16N WS |
| GTIN (EAN) | 4050118653700 |
| Qty. | 50 items |
| 46.5 mm | |
| Depth (inches) | 1.831 inch |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 12 mm |
| Width (inches) | 0.472 inch |
| Net weight | 24.06 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | white |
| UL 94 flammability rating | V-0 |
| Version | Screw connection for screwable cross-connection |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| Type of mounting | Snap-on |
| Number of connections | 2 |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Rail | TS 35 |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Rated cross-section | 16 mm² |
| Rated voltage | 690 V |
| Rated DC voltage | 690 V |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x | 2.43 W |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74635) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2602340000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2602340000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2602340000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
