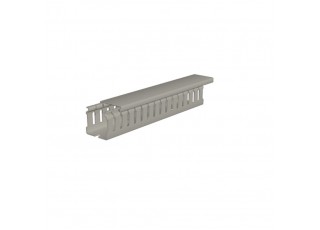

2589590000 CD 37.5X37.5 5/7.5 GY (48 pcs.)
- Brand:Weidmüller
- Product Code: 2589590000
- Availability: Out Of Stock
Cable duct, 37.5 mm x 37.5 mm, 5.00 mm x 7.50 mm, 2000 mm
| Version | Cable duct, 37.5 mm x 37.5 mm, 5.00 mm x 7.50 mm, 2000 mm |
| Order No. | 2589590000 |
| Type | CD 37.5X37.5 5/7.5 GY |
| GTIN (EAN) | 4050118601169 |
| Qty. | 48 |
| Height | 37.5 mm |
| Height (inches) | 1.476 inch |
| Width | 37.5 mm |
| Width (inches) | 1.476 inch |
| Length | 2,000 mm |
| Length (inches) | 78.74 inch |
| Net weight | 293 g |
| Operating temperature range | -5...60 °C |
| Colour | grey |
| Flexible wiring duct | No |
| Halogen | Yes |
| Included in delivery | Cable duct Lid |
| Lid | Yes |
| Material | PVC / lead-free |
| Non-tracking | Yes |
| Operating temperature range | -5...60 °C |
| Slit gap | 7.5 mm |
| Slit width | 5 mm |
| Standards | In accordance with DIN EN 50085 |
| Type of mounting | when screwed in With adhesive Riveted |
| UL 94 flammability rating | V-0 |
| Usable cross-section | 1,125 mm² |
| Version of side panel | slotted |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_68441) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2589590000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000012 |
| ETIM 7.0 | EC000012 |
| ETIM 8.0 | EC000012 |
| ETIM 9.0 | EC000012 |
| ECLASS 9.1 | 27-40-07-03 |
| ECLASS 10.0 | 27-40-07-03 |
| ECLASS 11.0 | 27-40-07-03 |
| ECLASS 12.0 | 27-40-07-03 |
| ECLASS 13.0 | 27-40-07-03 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E500004 |
