2589360000 CD-HF 50X75 5/7.5 DKGY (24 pcs.)
- Brand:Weidmüller
- Product Code: 2589360000
- Availability: Out Of Stock

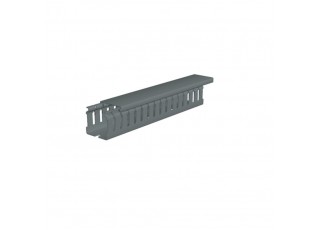

Halogen-free cable duct, 50 mm x 75 mm, 5.00 mm x 7.50 mm, 2000 mm
| Version | Halogen-free cable duct, 50 mm x 75 mm, 5.00 mm x 7.50 mm, 2000 mm |
| Order No. | 2589360000 |
| Type | CD-HF 50X75 5/7.5 DKGY |
| GTIN (EAN) | 4050118603453 |
| Qty. | 24 |
| Height | 50 mm |
| Height (inches) | 1.968 inch |
| Width | 75 mm |
| Width (inches) | 2.953 inch |
| Length | 2,000 mm |
| Length (inches) | 78.74 inch |
| Net weight | 529 g |
| Operating temperature range | -25...120 °C |
| Colour | dark grey |
| Flexible wiring duct | No |
| Halogen | No |
| Included in delivery | Cable duct Lid |
| Lid | Yes |
| Material | PPE |
| Non-tracking | Yes |
| Operating temperature range | -25...120 °C |
| Slit gap | 7.5 mm |
| Slit width | 5 mm |
| Standards | In accordance with DIN EN 50085 |
| Type of mounting | when screwed in With adhesive Riveted |
| UL 94 flammability rating | V-0 |
| Usable cross-section | 3,220 mm² |
| Version of side panel | slotted |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000012 |
| ETIM 7.0 | EC000012 |
| ETIM 8.0 | EC000012 |
| ETIM 9.0 | EC000012 |
| ECLASS 9.1 | 27-40-07-03 |
| ECLASS 10.0 | 27-40-07-03 |
| ECLASS 11.0 | 27-40-07-03 |
| ECLASS 12.0 | 27-40-07-03 |
| ECLASS 13.0 | 27-40-07-03 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E500004 |
