2588730000 CD 40X80 8/12 GY (24 pcs.)
- Brand:Weidmüller
- Product Code: 2588730000
- Availability: Out Of Stock

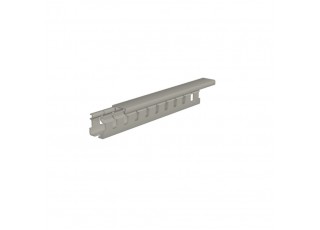

Cable duct, 40 mm x 80 mm, 8.00 mm x 12.00 mm, 2000 mm
| Version | Cable duct, 40 mm x 80 mm, 8.00 mm x 12.00 mm, 2000 mm |
| Order No. | 2588730000 |
| Type | CD 40X80 8/12 GY |
| GTIN (EAN) | 4050118602937 |
| Qty. | 24 |
| Height | 40 mm |
| Height (inches) | 1.575 inch |
| Width | 80 mm |
| Width (inches) | 3.15 inch |
| Length | 2,000 mm |
| Length (inches) | 78.74 inch |
| Net weight | 554 g |
| Operating temperature range | -5...60 °C |
| Colour | grey |
| Flexible wiring duct | No |
| Halogen | Yes |
| Included in delivery | Cable duct Lid |
| Lid | Yes |
| Material | PVC / lead-free |
| Non-tracking | Yes |
| Operating temperature range | -5...60 °C |
| Slit gap | 12 mm |
| Slit width | 8 mm |
| Standards | In accordance with DIN EN 50085 |
| Type of mounting | when screwed in With adhesive Riveted |
| UL 94 flammability rating | V-0 |
| Usable cross-section | 2,680 mm² |
| Version of side panel | slotted |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000012 |
| ETIM 7.0 | EC000012 |
| ETIM 8.0 | EC000012 |
| ETIM 9.0 | EC000012 |
| ECLASS 9.1 | 27-40-07-03 |
| ECLASS 10.0 | 27-40-07-03 |
| ECLASS 11.0 | 27-40-07-03 |
| ECLASS 12.0 | 27-40-07-03 |
| ECLASS 13.0 | 27-40-07-03 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E500004 |
