2562770000 CD-FLEX 12.5X12.5 (50 pcs.)
- Brand:Weidmüller
- Product Code: 2562770000
- Availability: Out Of Stock

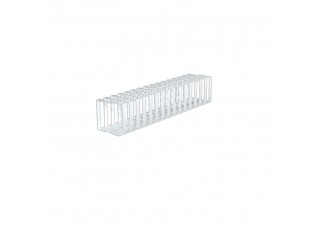

Flexible wiring duct, 12.5 mm x 12.5 mm, 5.00 mm x 7.50 mm, 500 mm
| Version | Flexible wiring duct, 12.5 mm x 12.5 mm, 5.00 mm x 7.50 mm, 500 mm |
| Order No. | 2562770000 |
| Type | CD-FLEX 12.5X12.5 |
| GTIN (EAN) | 4050118571585 |
| Qty. | 50 items |
| Height | 12.5 mm |
| Height (inches) | 0.492 inch |
| Width | 12.5 mm |
| Width (inches) | 0.492 inch |
| Length | 500 mm |
| Length (inches) | 19.685 inch |
| Net weight | 12 g |
| Operating temperature range | -15...80 °C |
| Colour | grey (similar to RAL 7001) |
| Flexible wiring duct | Yes |
| Lid | No |
| Material | Polypropylene |
| Non-tracking | Yes |
| Operating temperature range | -15...80 °C |
| Slit gap | 7.5 mm |
| Slit width | 5 mm |
| Type of mounting | With adhesive |
| UL 94 flammability rating | V-2 |
| Version of side panel | slotted |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000012 |
| ETIM 7.0 | EC000012 |
| ETIM 8.0 | EC000012 |
| ETIM 9.0 | EC000012 |
| ECLASS 9.1 | 27-40-07-03 |
| ECLASS 10.0 | 27-40-07-03 |
| ECLASS 11.0 | 27-40-07-03 |
| ECLASS 12.0 | 27-40-07-03 |
| ECLASS 13.0 | 27-40-07-03 |
| ROHS | Conform |
