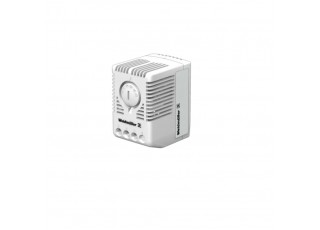

2558270000 HYSW 40-90% R.F. CO
- Brand:Weidmüller
- Product Code: 2558270000
- Availability: Out Of Stock
Humidity switch, IP20, grey white
| Version | Humidity switch, IP20, grey white |
| Order No. | 2558270000 |
| Type | HYSW 40-90% R.F. CO |
| GTIN (EAN) | 4050118568929 |
| Qty. | 1 items |
| 55 mm | |
| Depth (inches) | 2.165 inch |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 37 mm |
| Width (inches) | 1.457 inch |
| Net weight | 50 g |
| Operating temperature range | 0.01...60 °C |
| Contact design | CO contact |
| Operating temperature range | 0.01...60 °C |
| Protection degree | IP20 |
| Setting value relative humidity, max. | 90 % |
| Setting value relative humidity, min. | 40 % |
| Switching current, NC contact | 2 A |
| Switching current, NC contact, inductive load cos φ = 0.6 | 0.2 A |
| Switching current, NO contact | 5 A |
| Switching current, NO contact, inductive load cos φ = 0.6 | 0.2 A |
| Switching difference | 5 % |
| Switching voltage | 250 V AC / 30 V DC |
| Type of connection | Screw connection |
| Type of mounting | Rail |
| With humidity switch | Yes |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58500) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52968) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2558270000) |
| User Documentation | [Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_58463) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002008 |
| ETIM 7.0 | EC002008 |
| ETIM 8.0 | EC004587 |
| ETIM 9.0 | EC004587 |
| ECLASS 9.1 | 27-21-07-08 |
| ECLASS 10.0 | 27-21-07-08 |
| ECLASS 11.0 | 27-21-07-08 |
| ECLASS 12.0 | 27-21-07-08 |
| ECLASS 13.0 | 27-21-07-08 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E497840 |
