2558220000 THSW -20°+40°C NO
- Brand:Weidmüller
- Product Code: 2558220000
- Availability: Out Of Stock

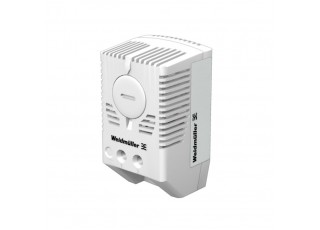

Temperature switch, grey white
| Version | Temperature switch, grey white |
| Order No. | 2558220000 |
| Type | THSW -20°+40°C NO |
| GTIN (EAN) | 4050118568875 |
| Qty. | 1 items |
| 36 mm | |
| Depth (inches) | 1.417 inch |
| Height | 72 mm |
| Height (inches) | 2.835 inch |
| Width | 40 mm |
| Width (inches) | 1.575 inch |
| Net weight | 50 g |
| Operating temperature range | -20...80 °C |
| Contact design | 1 NO contacts |
| Operating temperature range | -20...80 °C |
| Switching current, NO contact | 10 A |
| Switching current, NO contact, inductive load cos φ = 0.6 | 2 A |
| Switching difference | <7 K |
| Switching tolerance | ±4 K |
| Switching voltage | 240 V AC |
| Temperature setting range, max. | 40 °C |
| Temperature setting range, min. | -20 °C |
| Type of connection | Screw connection |
| Type of mounting | Rail |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58497) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52965) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2558220000) |
| User Documentation | [Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_58464) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002014 |
| ETIM 7.0 | EC002014 |
| ETIM 8.0 | EC004587 |
| ETIM 9.0 | EC004587 |
| ECLASS 9.1 | 27-21-07-07 |
| ECLASS 10.0 | 27-21-07-07 |
| ECLASS 11.0 | 27-21-07-07 |
| ECLASS 12.0 | 27-21-07-07 |
| ECLASS 13.0 | 27-21-07-07 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E497840 |
