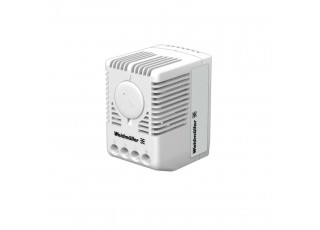

2558190000 THSW 1K 0°+60°C CO
- Brand:Weidmüller
- Product Code: 2558190000
- Availability: Out Of Stock
Temperature switch, grey white
| Version | Temperature switch, grey white |
| Order No. | 2558190000 |
| Type | THSW 1K 0°+60°C CO |
| GTIN (EAN) | 4050118568844 |
| Qty. | 1 items |
| 47.5 mm | |
| Depth (inches) | 1.87 inch |
| Height | 59.5 mm |
| Height (inches) | 2.343 inch |
| Width | 37 mm |
| Width (inches) | 1.457 inch |
| Net weight | 71 g |
| Operating temperature range | -20...80 °C |
| Contact design | CO contact |
| Operating temperature range | -20...80 °C |
| Switching current, NC contact | 10 A |
| Switching current, NC contact, inductive load cos φ = 0.6 | 2 A |
| Switching current, NO contact | 5 A |
| Switching current, NO contact, inductive load cos φ = 0.6 | 2 A |
| Switching difference | 1 K |
| Switching tolerance | ±3 K |
| Switching voltage | 250 V AC / 30 V DC |
| Temperature setting range, max. | 60 °C |
| Temperature setting range, min. | 0.01 °C |
| Type of connection | Screw connection |
| Type of mounting | Rail |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58497) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52961) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2558190000) |
| User Documentation | [Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_58480) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002014 |
| ETIM 7.0 | EC002014 |
| ETIM 8.0 | EC004587 |
| ETIM 9.0 | EC004587 |
| ECLASS 9.1 | 27-21-07-07 |
| ECLASS 10.0 | 27-21-07-07 |
| ECLASS 11.0 | 27-21-07-07 |
| ECLASS 12.0 | 27-21-07-07 |
| ECLASS 13.0 | 27-21-07-07 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E497840 |
