2558130000 FH-TH 650W 230V BK
- Brand:Weidmüller
- Product Code: 2558130000
- Availability: Out Of Stock

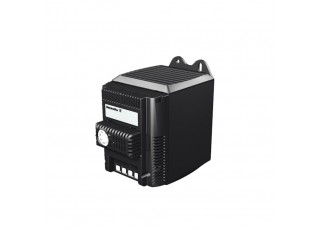

Heating panel fan, IP20, black
| Version | Heating panel fan, IP20, black |
| Order No. | 2558130000 |
| Type | FH-TH 650W 230V BK |
| GTIN (EAN) | 4050118568783 |
| Qty. | 1 items |
| Available until | 10.11.2023 |
| 139 mm | |
| Depth (inches) | 5.472 inch |
| Height | 142 mm |
| Height (inches) | 5.591 inch |
| Width | 88 mm |
| Width (inches) | 3.465 inch |
| Net weight | 800 g |
| Operating temperature range | -40...70 °C |
| Continuous heat output at 10°C | 650 W |
| Inrush current | max. 25 A |
| Operating temperature range | -40...70 °C |
| Operating voltage | 230 V |
| Protection degree | IP20 |
| Temperature setting range, max. | 40 °C |
| Temperature setting range, min. | -20 °C |
| Type of connection | Spring contact |
| Type of mounting | Rail Screw mounting |
| With room thermostat | Yes |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58499) [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58501) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_53269) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2558130000) |
| User Documentation | [Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_58479) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000737 |
| ETIM 7.0 | EC000737 |
| ETIM 8.0 | EC000737 |
| ETIM 9.0 | EC000737 |
| ECLASS 9.1 | 27-18-07-10 |
| ECLASS 10.0 | 27-18-07-10 |
| ECLASS 11.0 | 27-18-07-10 |
| ECLASS 12.0 | 27-18-07-10 |
| ECLASS 13.0 | 27-18-07-10 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E497839 |
