2557890000 RH-CBCO 30W 110-250V
- Brand:Weidmüller
- Product Code: 2557890000
- Availability: Out Of Stock

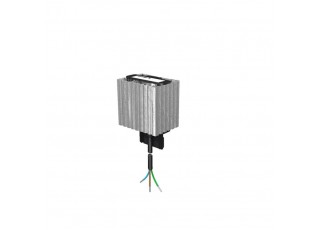

Radiant heating panel, 110 V, 250 V, IP44, silver
| Version | Radiant heating panel, 110 V, 250 V, IP44, silver |
| Order No. | 2557890000 |
| Type | RH-CBCO 30W 110-250V |
| GTIN (EAN) | 4050118568530 |
| Qty. | 1 items |
| 50 mm | |
| Depth (inches) | 1.968 inch |
| Height | 100 mm |
| Height (inches) | 3.937 inch |
| Width | 70 mm |
| Width (inches) | 2.756 inch |
| Net weight | 250 g |
| Operating temperature range | -40...70 °C |
| Continuous heat output at 10°C | 30 W |
| Inrush current | max. 1.2 A |
| Operating temperature range | -40...70 °C |
| Protection degree | IP44 |
| Supply voltage, max. | 250 V |
| Supply voltage, min. | 110 V |
| Type of connection | Pre-assembled cable |
| Type of mounting | Rail |
| With room thermostat | No |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58498) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_53243) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2557890000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000737 |
| ETIM 7.0 | EC000737 |
| ETIM 8.0 | EC000737 |
| ETIM 9.0 | EC000737 |
| ECLASS 9.1 | 27-18-07-10 |
| ECLASS 10.0 | 27-18-07-10 |
| ECLASS 11.0 | 27-18-07-10 |
| ECLASS 12.0 | 27-18-07-10 |
| ECLASS 13.0 | 27-18-07-10 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E497839 |
