2557840000 REF 600 54 GY
- Brand:Weidmüller
- Product Code: 2557840000
- Availability: Out Of Stock

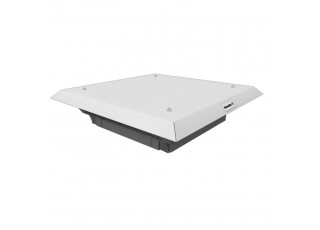

Exhaust filter, IP54, grey
| Version | Exhaust filter, IP54, grey |
| Order No. | 2557840000 |
| Type | REF 600 54 GY |
| GTIN (EAN) | 4050118568486 |
| Qty. | 1 items |
| 106 mm | |
| Depth (inches) | 4.173 inch |
| Height | 436 mm |
| Height (inches) | 17.165 inch |
| Width | 436 mm |
| Width (inches) | 17.165 inch |
| Net weight | 783 g |
| Operating temperature range | -15...55 °C |
| Colour | grey |
| EMC version | No |
| Fan type | Roof fan |
| Filter class | G 4 |
| Height of installation cut-outs | 291 mm |
| Mounting depth | 34 mm |
| Mounting height | 72 mm |
| Operating temperature range | -15...55 °C |
| Protection class (UL) | Type 12 |
| Type of mounting | Snap-on |
| Width of installation cut-outs | 291 mm |
| With filter | Yes |
| User Documentation | [Installation- and operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_94198) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002513 |
| ETIM 7.0 | EC002513 |
| ETIM 8.0 | EC002513 |
| ETIM 9.0 | EC002513 |
| ECLASS 9.1 | 27-18-07-06 |
| ECLASS 10.0 | 27-18-07-06 |
| ECLASS 11.0 | 27-18-07-06 |
| ECLASS 12.0 | 27-18-07-06 |
| ECLASS 13.0 | 27-18-07-06 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E252704 |
